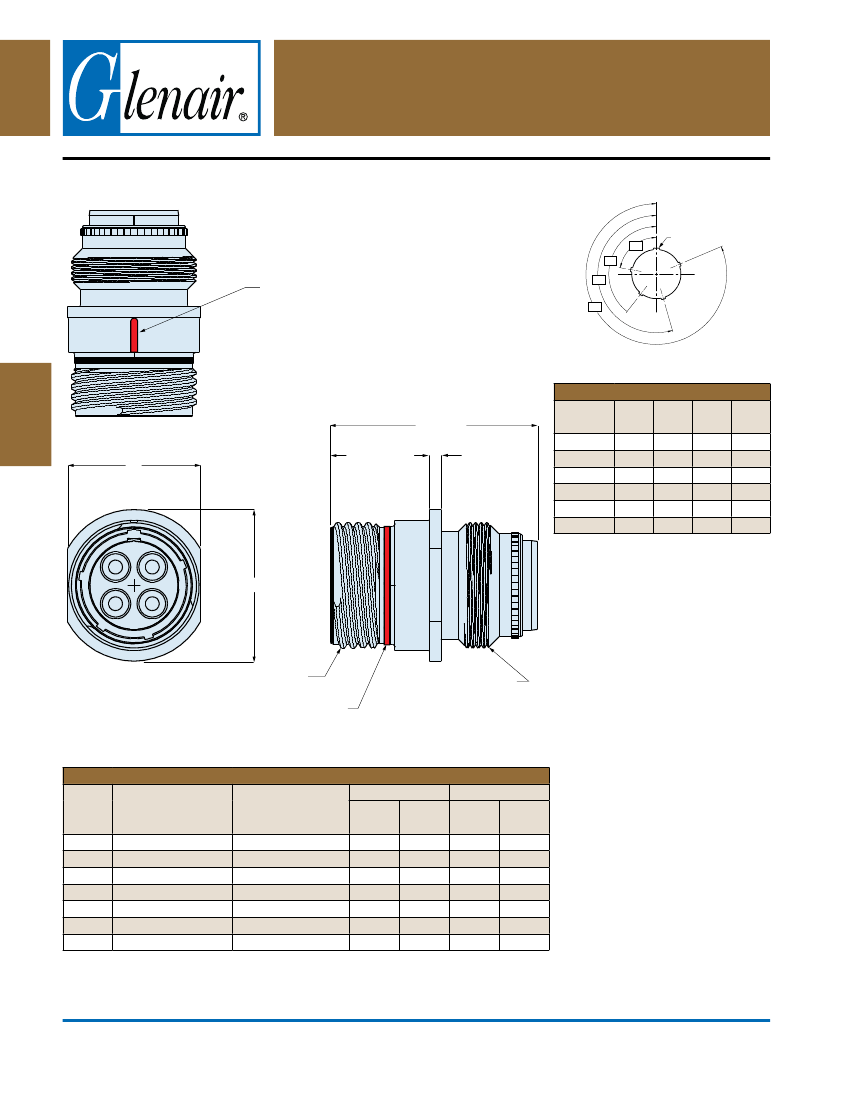

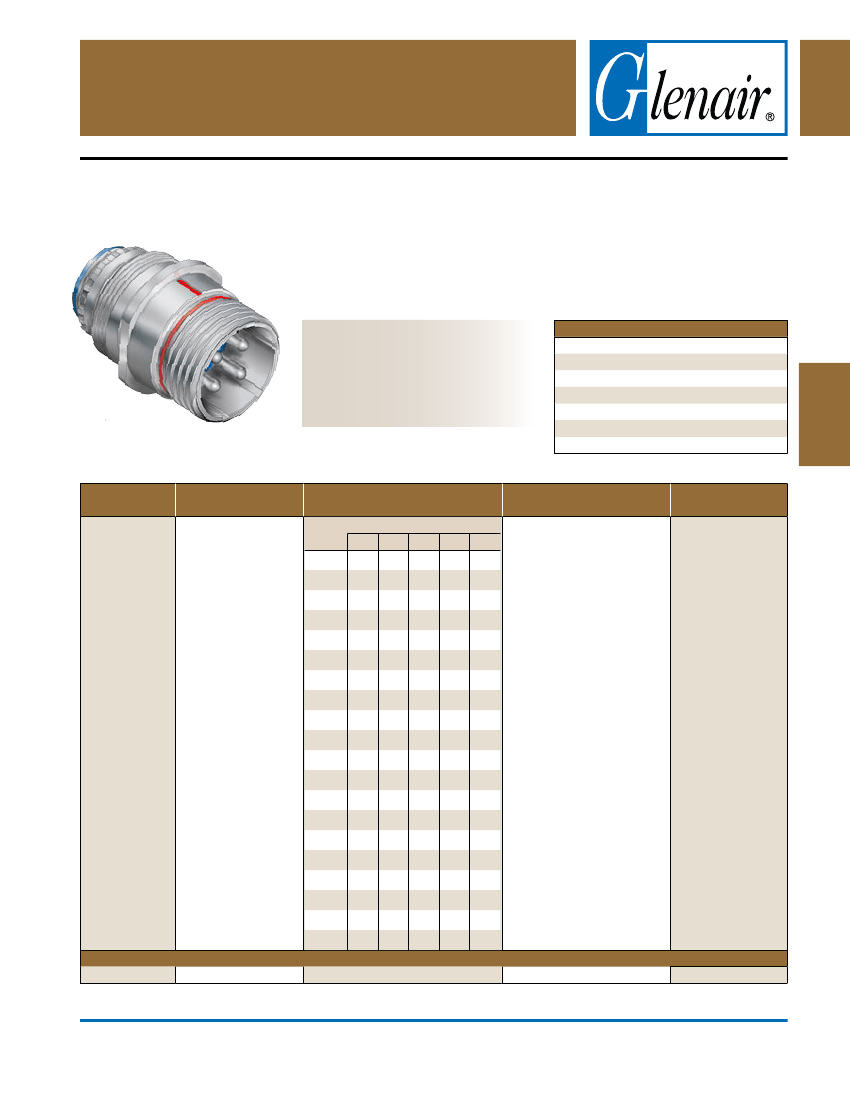

Series 970 PowerTrip™ Connectors and Accessories
Cable Connectors
970-005 Cable Receptacle
970-005 cable receptacles
These connectors, often called “in-line”, “line” or “free-hanging” receptacles, are installed
on cables for cord-to-cord applications. These connectors feature high ampacity
LouverBand contacts. Coupling threads are triple-start ACME type. EMI protected with
ground spring and splined backshell interface. Standard contacts are silver plated
high conductivity copper alloy, or choose gold-plated contacts for improved corrosion
protection. Fluorosilicone rubber gaskets and grommets provide watertight sealing.
Unassembled contacts are packaged with connector.
• EMI Protected
• High Ampacity Contacts
• Splined Backshell Interface
2000 VAC Sea Level DWV Rating
-65°C to +200°C Operating Temperature
6 Feet Water Immersion, 48 Hours
65 dB min. Attenuation, up to 10GHz
2000 Cycles Mating Durability
MIL-S 901 Grade A High-Impact Shock
43 g Random Vibration
PRoDUCT FACTS
B
C
HoW To oRDER
SERIES
SHELL MATL
AND FINISH
Aluminum,
Electroless Nickel
Finish
Contact Size and Qty
Contact
#16 #12 #8
#4 #1/0
Arr.
2
2
2
3
4
2
4
3
3
2
3
5
4
3
5
2
3
4
4
2
3
2
5
3
3
4
5
2
SHELL SIZE - INSERT
ARRANGEMENT
CoNTACT TYPE AND
PLATING
Pin Contacts, Silver Plating*
Pin Contacts, Gold Plating
Socket Contacts, Silver
Plating*
Socket Contacts, Gold
Plating
Pin Connector, without
Contacts
Socket Connector, without
Contacts
* Size 12 and 16 contacts are
gold-plated. Size 8, 4 and
1/0 are silver plated.
KEY PoSITIoN
Cable
Receptacle
970-005
ME
P1
18-2
18-4
20-3
MT
20-4
Aluminum, Nickel-
PTFE Finish
20-5
20-7
NF
24-2
Aluminum, Olive
Drab Cadmium
24-3
24-5
ZR
24-6
Aluminum, Black
Zinc-Nickel Finish
24-A6
28-4
Z1
Passivated
28-9
Stainless Steel
32-2
32-3
32-4
32-5
32-6
36-4
40-5
MT
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
-1
P2
S1
-2
-3
S2
A
B
-4
-5
-6
970-005
© 2013 Glenair, Inc.
Sample Part Number
24-5
P1
-1
Printed in U.S.A.
U.S. CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
