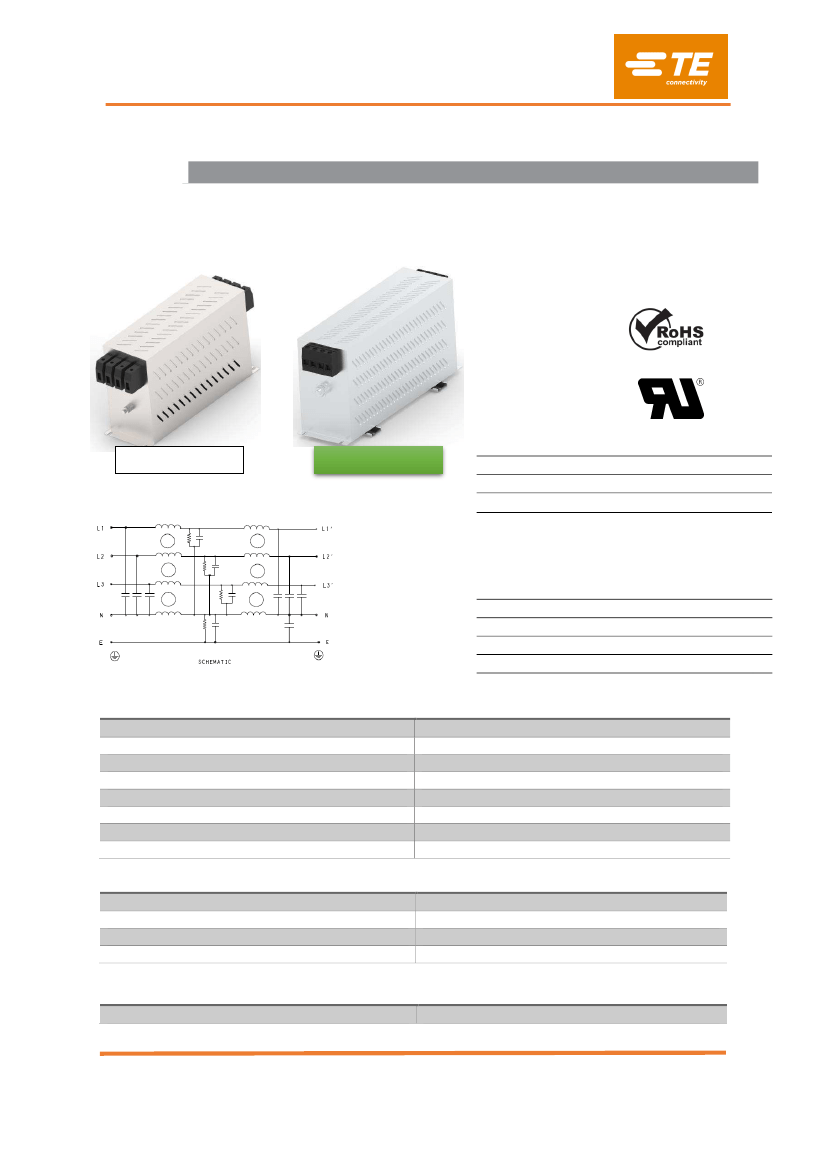

KEV-BS SERIES
Three Phase High Performance EMI Filter
–
Bookshelf Type Dual Stage WYE Configuration
DATASHEET
High performance filters with bookshelf design is designed for motor drive applications requiring
minimum space and convenient installation with superior performance at significant interference
levels.
Approvals & Compliance
UL Recognised
CSA Certified *
*30
st
June 2021
Features
STANDARD
NEW DIN RAIL
Typical Circuit Diagram
High Performance Dual Stage
Bookshelf Design with neutral
Compact / Light Weight / Cost effective
Applications
AC/Dc Drives
HVAC
Robotics
UPS
Specifications
Electrical Characteristics
Maximum Continuous Operating Voltage
Current Ratings
Operating Frequency
High Potential Test Voltage -440VAC
High Potential Test Voltage -520VAC
Overload Capability
Functional Characteristics
Operating Temperature Range
Climatic Category
Termination
Flammability corresponding to
Reference Standards
Design Corresponding to
UL 60939-3 and CSA 22.2 No.8-13
440/520VAC
7A to 150A @40°C, Din Mount 7A to 100A@40°C
50/60Hz
Line to Ground 2632VDC for 1 Minute
Line to Line 1892VDC for 1 Minute
Line to Ground 2856VDC for 1 Minute
Line to Line 2236VDC for 1 Minute
135% of Rated current for 15 minutes
-25°C to +85ºC
25/85/21
Shock Proof
UL 94 V-0
2376474-1
Rev B
Date: 30-Apr-2021
Dimensions in
millimetres
Dimensions Shown for
reference purposes only.
Specifications subject to
change
For Email, phone or live chat,
go to: www.te.com/help
KEV-BS SERIES

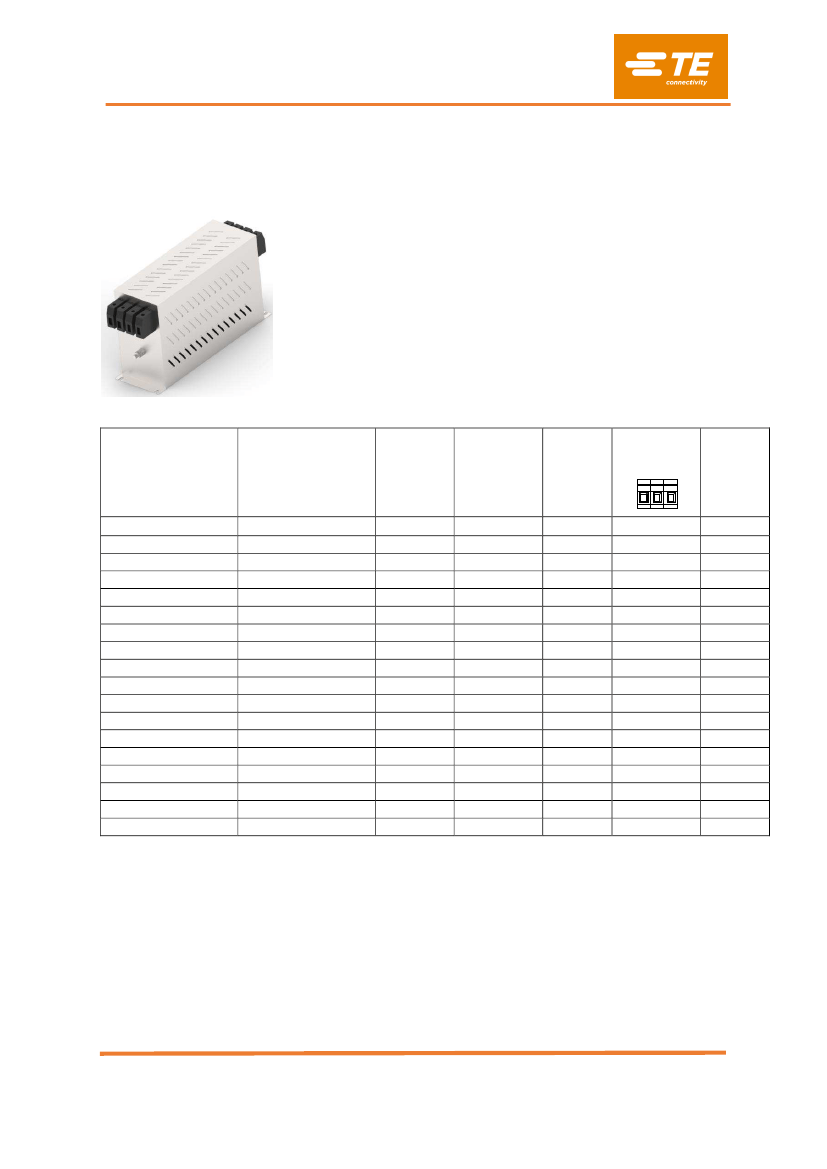

Selection Table
–

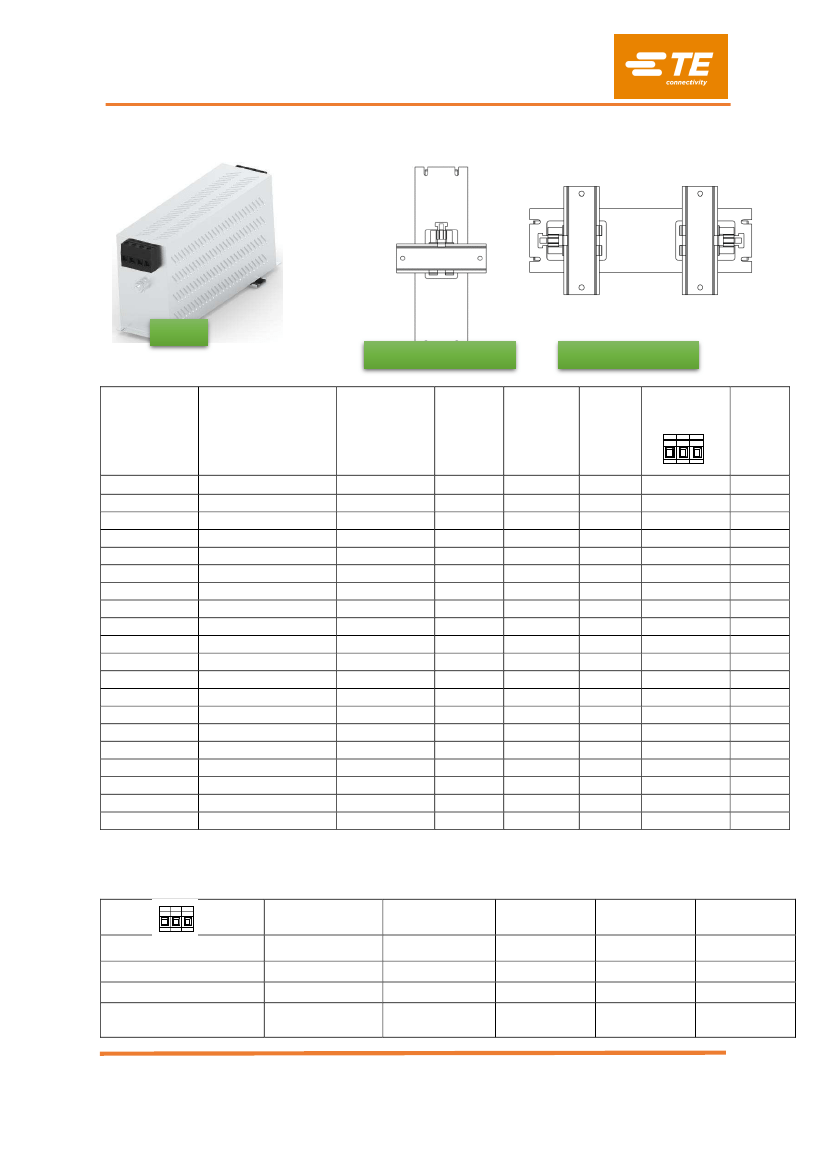

Din Rail Mount
NEW
HORIZONTAL MOUNT
Note: Din Rail not supplied
VERTICAL MOUNT
TE Ordering
Number
3-1609998-0
3-1609998-1
3-1609998-2
3-1609998-3
3-1609998-4
3-1609998-5
3-1609998-6
3-1609998-7
3-1609998-8
3-1609998-9
6-1609998-0
6-1609998-1
6-1609998-2
6-1609998-3
6-1609998-4
6-1609998-5
6-1609998-6
6-1609998-7
6-1609998-8
6-1609998-9
Part Number
Din Type
Rated
Current
@40°C
7A
16A
30A
7A
16A
30A
42A
55A
75A
100A
7A
16A
30A
7A
16A
30A
42A
55A
75A
100A
Rated
Voltage
@40°C
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
Leakage
Current
(mA)
5
5
5
5
5
5
11
11
11
11
5
5
5
5
5
5
11
11
11
11
Termination
Weight
(Kgs)
7KEVD10ABSWHM
16KEVD10ABSWHM
30KEVD10ABSWHM
7KEVD10ABSWVM
16KEVD10ABSWVM
30KEVD10ABSWVM
42KEVD10ABSWHM
55KEVD10ABSWHM
75KEVD10ABSWHM
100KEVD10ABSWHM
7KEVD10BBSWHM
16KEVD10BBSWHM
30KEVD10BBSWHM
7KEVD10BBSWVM
16KEVD10BBSWVM
30KEVD10BBSWVM
42KEVD10BBSWHM
55KEVD10BBSWHM
75KEVD10BBSWHM
100KEVD10BBSWHM
HORIZONTAL
HORIZONTAL
HORIZONTAL
VERTICAL
VERTICAL
VERTICAL
HORIZONTAL
HORIZONTAL
HORIZONTAL
HORIZONTAL
HORIZONTAL
HORIZONTAL
HORIZONTAL
VERTICAL
VERTICAL
VERTICAL
HORIZONTAL
HORIZONTAL
HORIZONTAL
HORIZONTAL
41
41
41
41
41
41
10
10
16
25
41
41
41
41
41
41
10
10
16
25
1.6
2.1
2.3
1.7
2.2
2.4
3.2
3.2
4.2
4.2
1.6
2.1
2.3
1.7
2.2
2.4
3.2
3.2
4.2
4.2
Connectors Cross Section
41
Wire Section (mm
2
)
Wire Section (AWG)
Wire Stripping
Max Recommended
Torque
4mm
2
12AWG
Max 10mm
0.5 Nm / 4.5 in.lbs
10
10 mm²
8 AWG
max 13.5 mm
1.2 Nm / 10.8
in.lbs
16
16 mm²
6 AWG
max 17 mm
2÷2.2 Nm /
18÷19.8 in.lbs
25
25 mm²
4 AWG
max 17 mm
2 Nm / 18
in.lbs
50
50 mm²
1/0 AWG
max 20 mm
6 Nm / 54
in.lbs
2376474-1
Rev B
Date: 30-Apr-2021
Dimensions in
millimetres
Dimensions Shown for
reference purposes only.
Specifications subject to
change
For Email, phone or live chat,
go to: www.te.com/help
KEV-BS SERIES

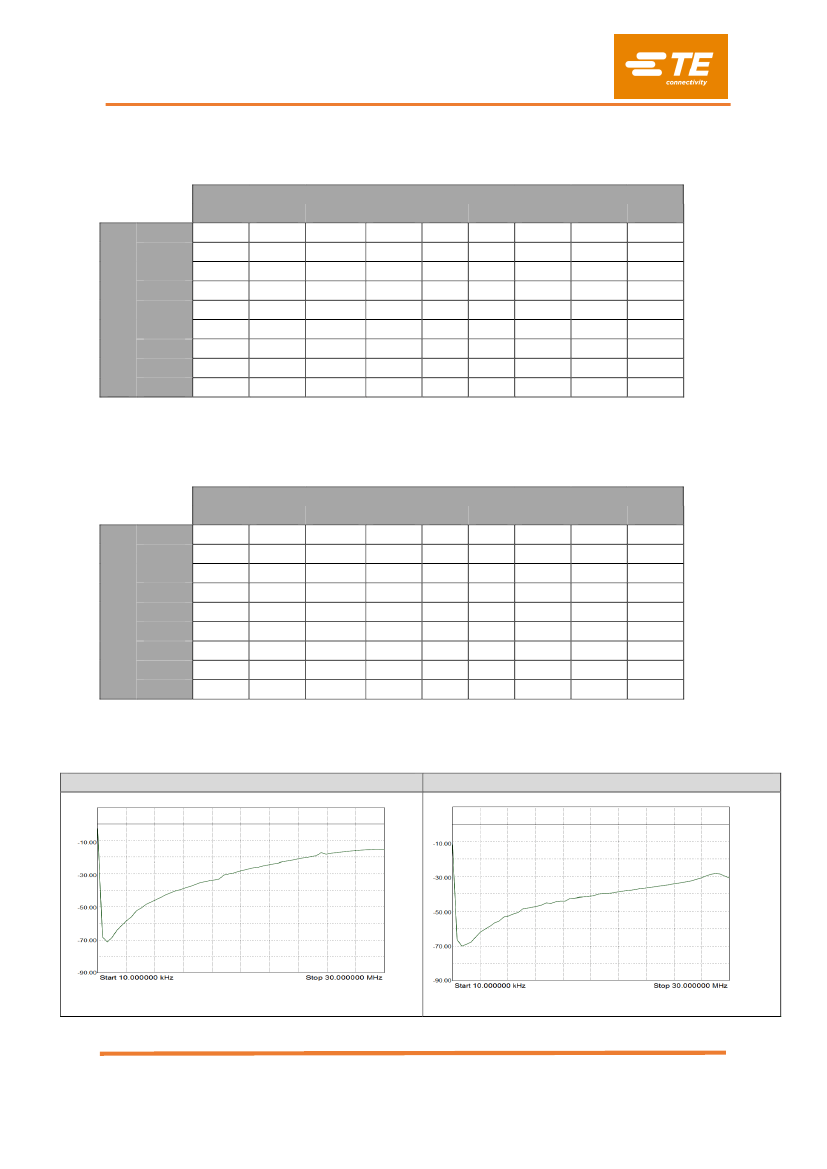

Insertion Loss (Typical)
–
Measured in Closed 50Ω System
Common Mode 50Ω
/ 50Ω
Frequency in MHz
0.15
0.5
1
3
72
78
72
62
68
70
74
65
60
79
77
64
61
75
78
65
26
30
32
50
28
32
35
51
42
32
36
48
50
66
60
50
44
61
56
47
7A
16A
30A
42A
55A
75A
100A
125A
150A
0.01
70
72
49
50
41
42
40
39
31
0.05
70
70
50
50
40
40
37
41
33
5
54
58
56
57
52
50
50
45
43
10
45
46
48
46
49
46
46
37
36
30
25
24
34
32
22
21
20
17
21
Current Rating
7A
16A
30A
42A
55A
75A
100A
125A
150A
0.01
50
56
31
32
30
40
45
49
44
0.05
52
50
34
32
35
38
40
50
45
Differential Mode 50Ω
/ 50Ω
Frequency in MHz
0.15
0.5
1
3
36
50
50
46
38
51
52
48
48
83
80
57
50
80
75
72
20
22
34
45
25
21
34
46
50
25
32
50
54
53
45
33
43
56
47
33
5
40
42
45
46
48
48
47
26
27
10
26
28
23
26
26
30
32
19
22
30
30
32
25
22
27
24
22
19
22

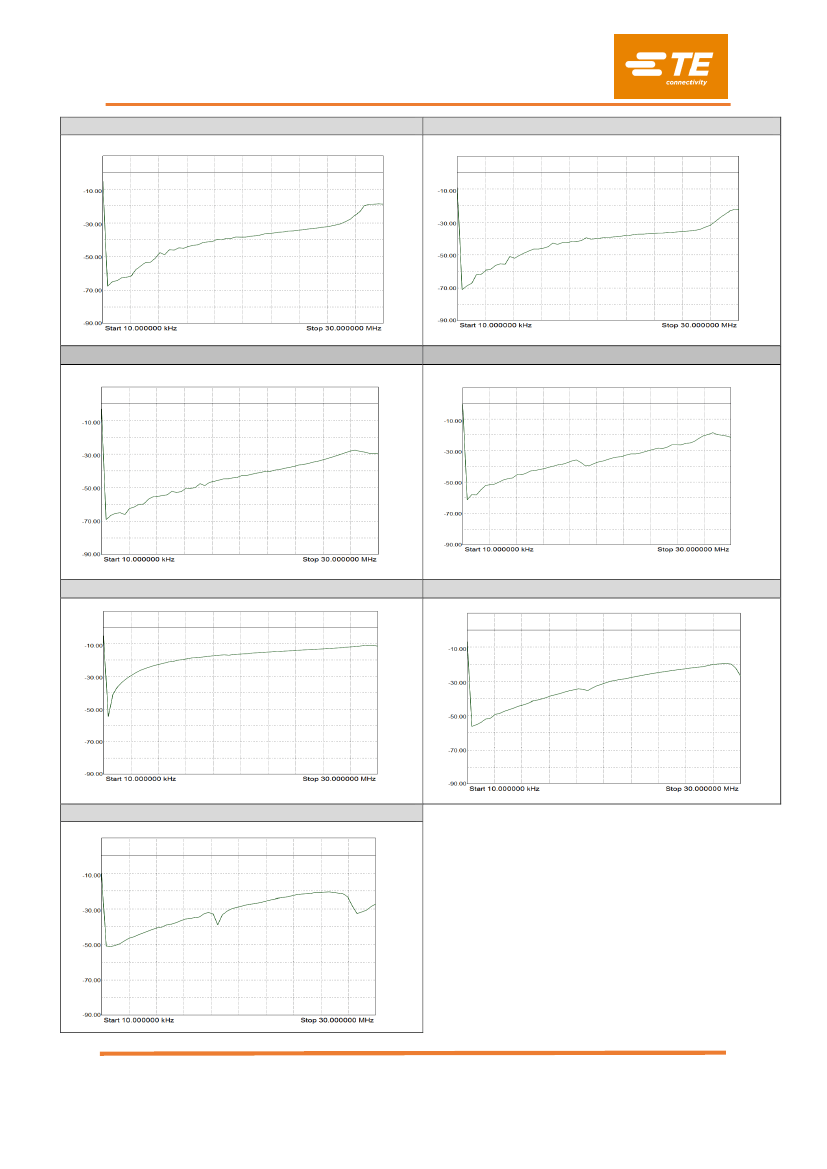

Common Mode Insertion Loss (Typical in dB
–
refer to Table above)
7A
16A
Current Rating
2376474-1
Rev B
Date: 30-Apr-2021
Dimensions in
millimetres
Dimensions Shown for
reference purposes only.
Specifications subject to
change
For Email, phone or live chat,
go to: www.te.com/help
