FBC1812-221HE Overview

Ferrite Bead, 1 Function(s), 2A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812, 2 PIN

FBC1812-221HE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	1812
Reach Compliance Code	compli
ECCN code	EAR99
shell code	1812
structure	Monolithic
Maximum DC resistance	0.05 Ω
filter type	FERRITE BEAD
maximum frequency	100 MHz
minimum frequency	100 MHz
high	1.5 mm
JESD-609 code	e3
length	4.5 mm
Manufacturer's serial number	FBC-H
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Output impedance	220 OHM Ω
method of packing	TAPE AND REEL
physical size	L4.5XB3.2XH1.5 (mm)/L0.177XB0.126XH0.059 (inch)
Rated current	2 A
series	FBC-H
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
width	3.2 mm
Base Number Matches	1

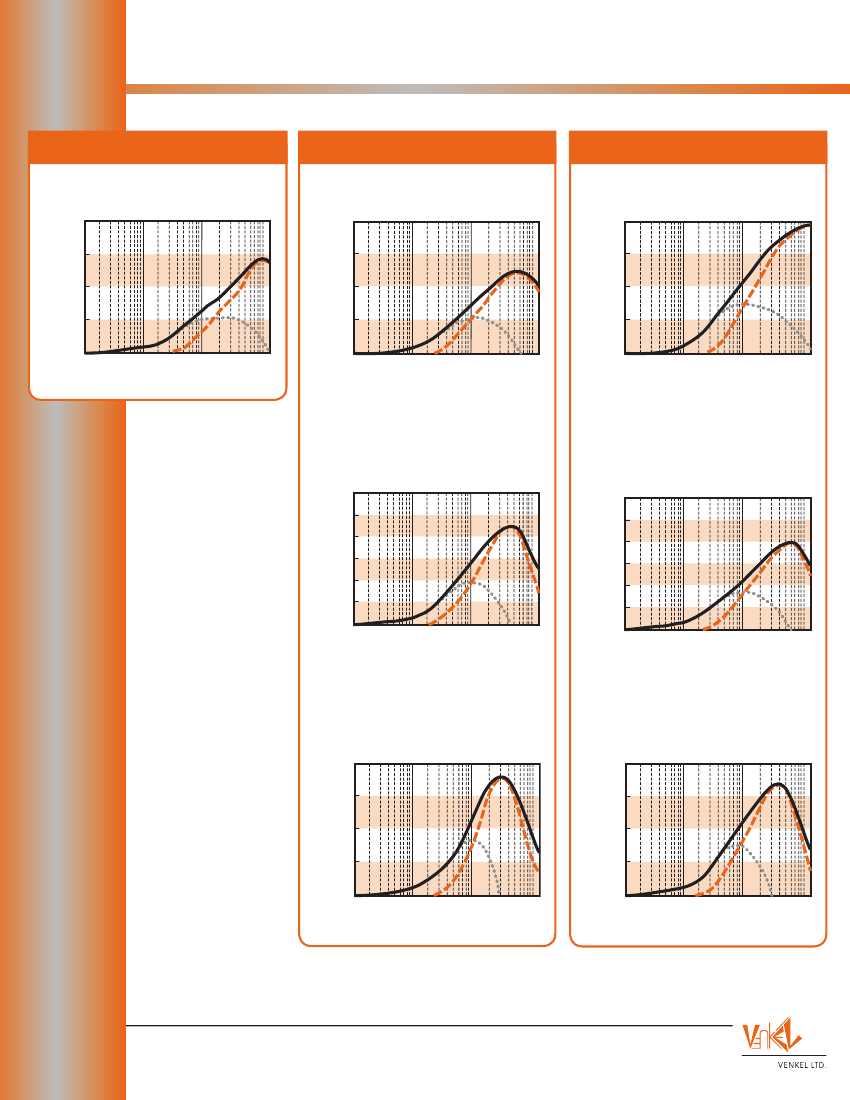

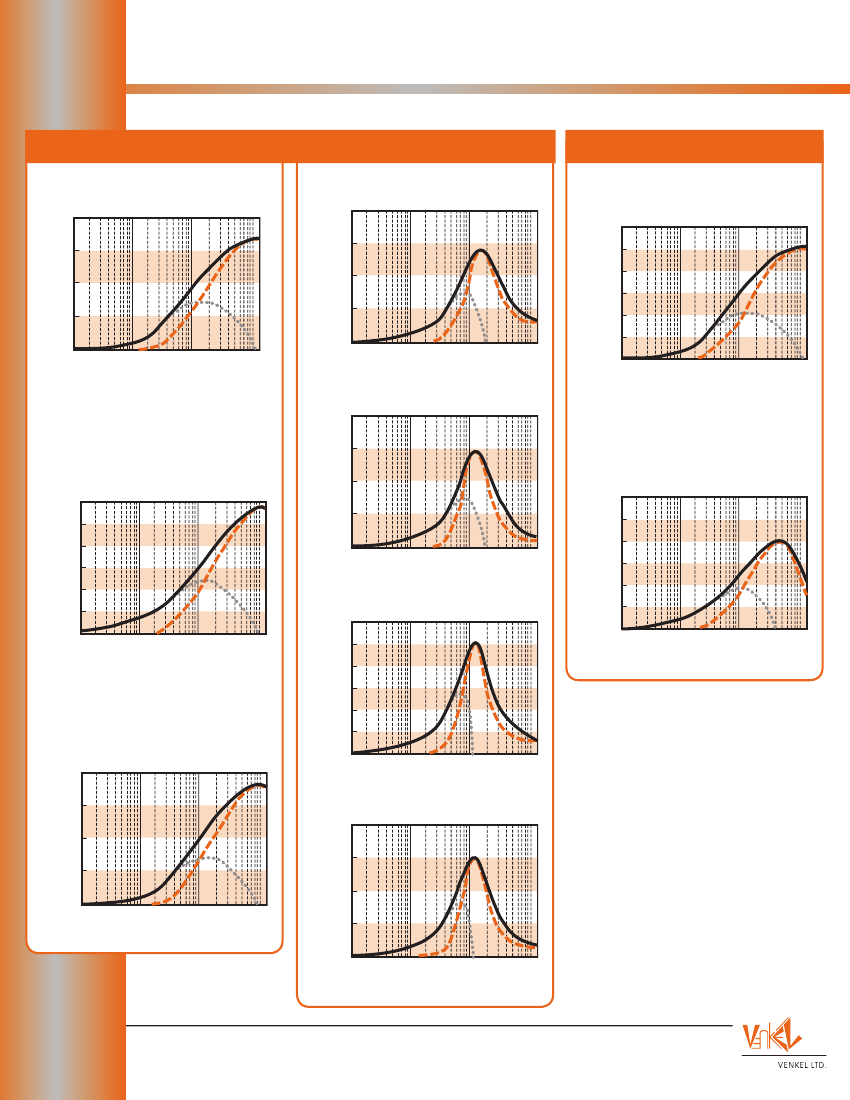

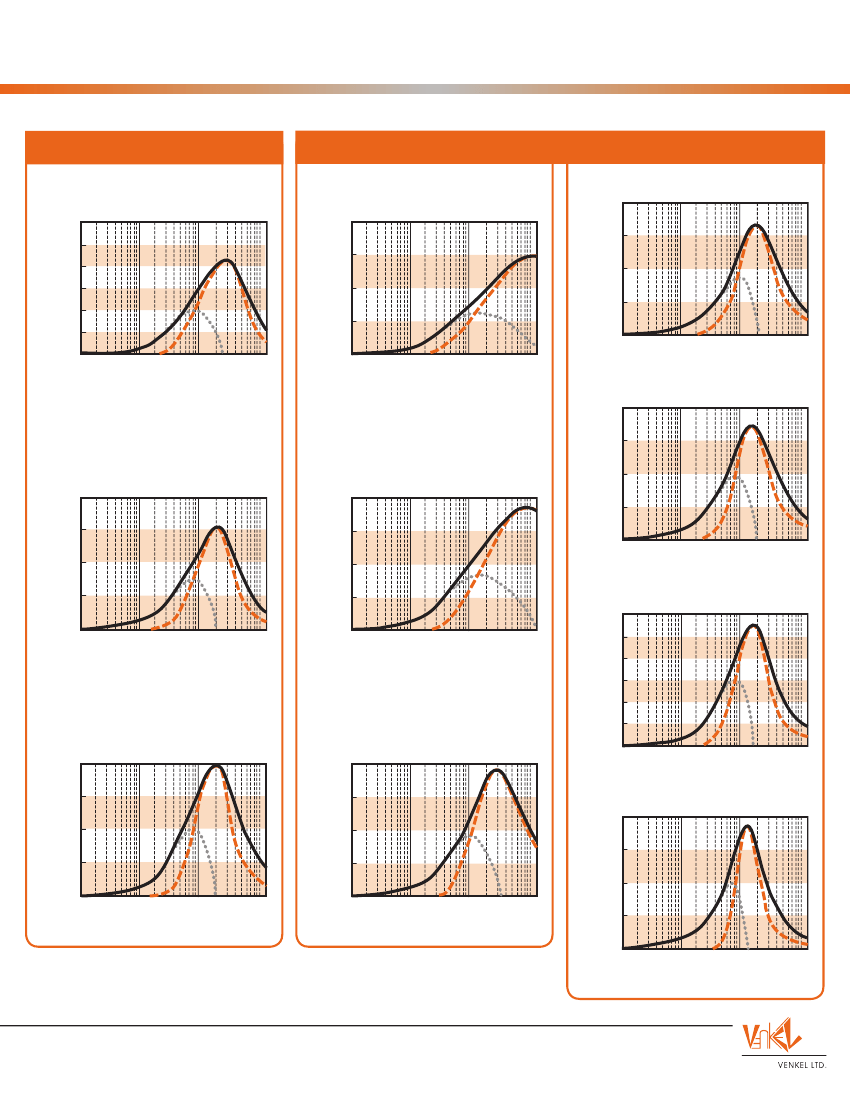

Preview

Download Datasheet

View All

High Current Ferrite Beads

This series is used for EMI suppression and can match power lines

to a maximum of 3A or 3000mA.

These beads exhibit high current capabilities due to their low

DC resistance.

FBC-L Series:

This series provides lower impedance at 10MHz.

FBC-H Series:

This series provides higher impedance values at 10MHz

due to different material permeability.

Features

•

Smallest beads possible for high current and high impedance

Perfect shape for automatic mounting with no directionality

Excellent solderability and high heat resistance for either flow or reflow soldering

Monolithic inorganic material construction for high reliability

Application

•

EMI and Noise Suppression in power lines.

Unit: mm (inch)

Dimensions

Size

0402

0603

1.0 ± 0.05

(0.040 ± 0.002)

1.6 ± 0.15

(0.063 ± 0.006)

2.0 ± 0.2

(0.079 ± 0.008)

3.2 ± 0.2

(0.126 ± 0.008)

4.5 ± 0.2

(0.177 ± 0.008)

4.5 ± 0.2

(0.177 ± 0.008)

0.5 ± 0.05

(0.020 ± 0.002

0.8 ± 0.15

(0.031 ± 0.006)

1.25 ± 0.2

(0.050 ± 0.008)

1.6 ± 0.2

(0.063 ± 0.008)

1.6 ± 0.2

(0.063 ± 0.008)

3.2 ± 0.2

(0.126 ± 0.008)

0.5 ± 0.05

(0.020 ± 0.002

0.8 ± 0.15

(0.031 ± 0.006)

0.9 ± 0.2

(0.036 ± 0.008)

1.1 ± 0.2

(0.043 ± 0.008)

1.6 ± 0.2

(0.063 ± 0.008)

1.5 ± 0.2

(0.060 ± 0.008)

0.25 ± 0.1

(0.010 ± 0.004)

0.3 ± 0.2

(0.012 ± 0.008)

0.5 ± 0.3

(0.020 ± 0.012)

0.5 ± 0.3

(0.020 ± 0.012

0.5 ± 0.3

(0.020 ± 0.02)

0.5 ± 0.3

(0.020 ± 0.012

Ferrite body

Termination finish is

100% matte Tin (Sn)

over Nickel (Ni)

0805

1206

1806

1812

How To Order

FBC1206

Series

—

121

Impedance

Values

L: Low Impedance

at 10MHz

H: High Impedance

at 10MHz.

Packaging

E: Embossed Tape

P: Paper Tape

Standard termination finish for this product is

100% matte Tin (Sn)

All components in this section are RoHS compliant per the EU directives and definitions.

111

5900 Shepherd Mountain Cove • Austin, TX 78730

Phone: 512 / 794-0081 • Fax: 512 / 794-0087 • Toll Free: 800 / 950-8365

e-mail: sales@venkel.com • www.venkel.com
