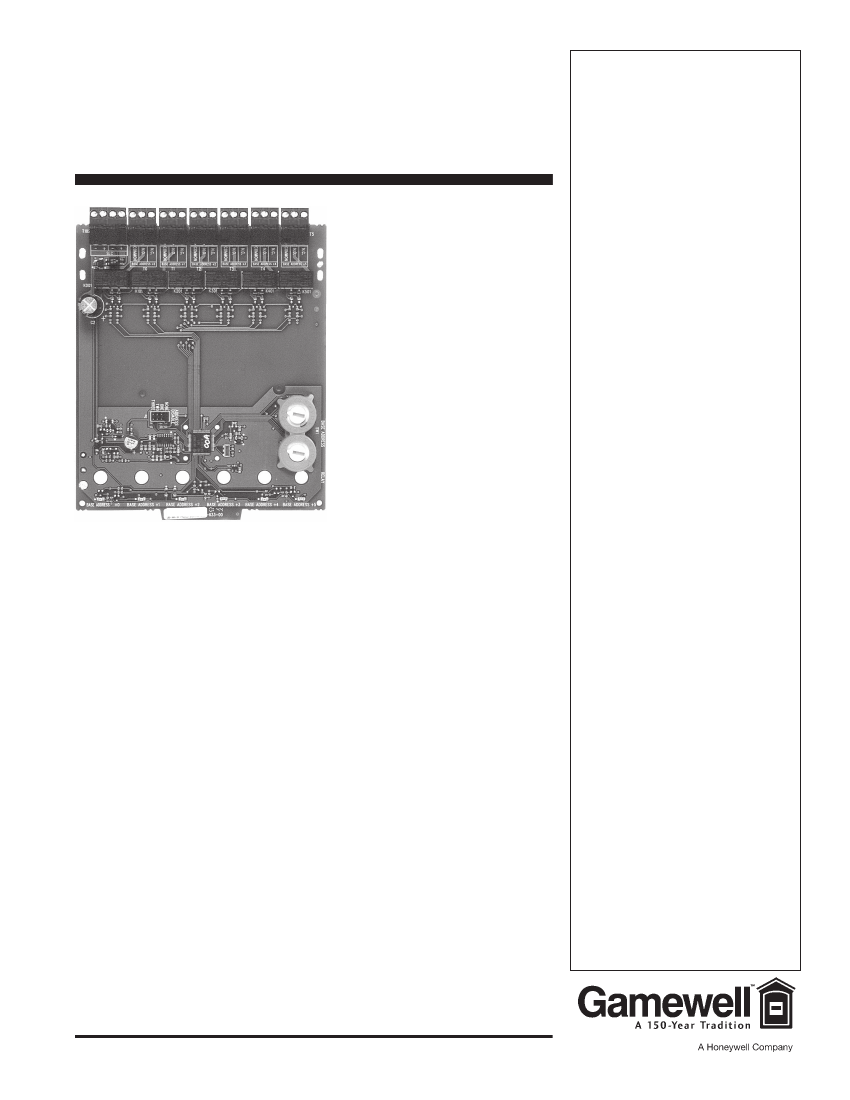

RCM-SS
Six-Relay Addressable Control Module
Description
Gamewell’s SmartScan
TM
RCM-SS
six-relay control module
provides
an intelligent alarm system with six
Form-C relays.
The first module is addressed from
01 to 94 while the remaining mod-
ules are automatically assigned to
the next five higher addresses. Pro-
visions are included for disabling a
maximum of three unused modules.
A single isolated set of dry relay
contacts is provided for each mod-
ule address, which is capable of
being wired for either a normally-
open or normally-closed operation.
The module allows the control panel
to switch these contacts on com-
mand. No supervision is provided for
the controlled circuit.
Each RCM-SS module has panel-
controlled green LED indicators. The panel can cause the LEDs to blink, latch
on, or latch off.
Features
• Six addressable Form-C relay
contacts.
• Removable 12 AWG (3.25 mm²)
to 18 AWG (0.9 mm²) plug-in
terminal blocks.
• Status indicators for each point.
• Unused addresses may be
disabled.
• Rotary address switches.
• Compatible with Gamewell’s
602, 610, 632, 654 and 658
FACPs with SmartScan™ SLC.
• Mount one or two modules in a
BB-XP cabinet (optional).
• Mount up to six modules on a
CHS-6 chassis in a BB-25
cabinet (optional).
• Mounting hardware included.
Listings
Listings and approvals below
apply to the RCM-SS Six-Relay
Addressable Control Module. In
some cases, the module may
not be listed by certain approval
agencies, or listing may be in
process. Consult factory for
latest listing status.
• UL Listed: file S521.
• CSFM approved:
file 7300-1288:169.
• MEA approved:
file 368-01-E Vol. II.
Product Line Information
RCM-SS:
Six-relay control module.
BB-XP:
Optional cabinet for one or two modules.
Dimensions, DOOR:
9.234"
(23.454 cm) wide (9.484" [24.089 cm] including hinges), x 12.218" (31.0337 cm)
high, x 0.672" (1.7068 cm) deep;
BACKBOX:
9.0" (22.860 cm) wide (9.25"
[23.495 cm] including hinges), x 12.0" (30.480 cm) high x 2.75" (6.985 cm);
CHAS-
SIS (installed):
7.150" (18.161 cm) wide overall x 7.312" (18.5725 cm) high inte-
rior overall x 2.156" (5.4762 cm) deep overall.
BB-25:
Optional cabinet for up to six modules mounted on CHS-6 chassis
(be-
low).
Dimensions, DOOR:
24.0" (60.96 cm) wide x 12.632" (32.0852 cm) high, x
1.25" (3.175 cm) deep, hinged at bottom;
BACKBOX:
24.0" (60.96 cm) wide x
12.550" (31.877 cm) high x 5.218" (13.2537 cm) deep.
CHS-6:
Chassis, mounts up to six modules in a BB-25 cabinet.
RCM-SS
CS-2469 10/25/04
Page 1 of 2
Specifications
Standby current
1.45 mA (SLC current draw with all ad-
dresses used; if some addresses are
disabled, the standby current de-
creases).
Alarm current
32 mA (assumes all six relays have been
switched once and all six LEDs solid
ON).
Temperature range
32°F to 120°F (0°C to 49°C).
Humidity
10% to 85% noncondensing.
Dimensions
6.8" (172.72 mm) high x 5.8" (147.32
mm) wide x 1.0" (25.40 mm) deep.
Shipping weight
1.1 lb. (0.499 kg) including packaging.
Mounting options
CHS-6 chassis, BB-25 cabinet.
Relay current
30 mA/relay pulse (15.6 ms pulse dura-
tion), pulse under panel control.
Relay contact ratings
30 VDC; 70.7 VAC.
Current ratings
• 3.0 A @ 30 VDC maximum, resistive,
non-coded.
• 2.0 A @ 30 VDC maximum, resistive,
coded.
• 1.0 A @ 30 VDC maximum, inductive
(L/R = 2 ms), coded.
• 0.5 A @ 30 VDC maximum, inductive
(L/R = 5 ms), coded.
• 0.9 A @ 110 VDC maximum, resistive,
non-coded.
• 0.9 A @ 125 VAC maximum, resistive,
non-coded.
• 0.7 A @ 70.7 VAC maximum, inductive
(PF = 0.35), non-coded.
• 0.5 A @ 125 VAC maximum, inductive (PF
= 0.35), non-coded.

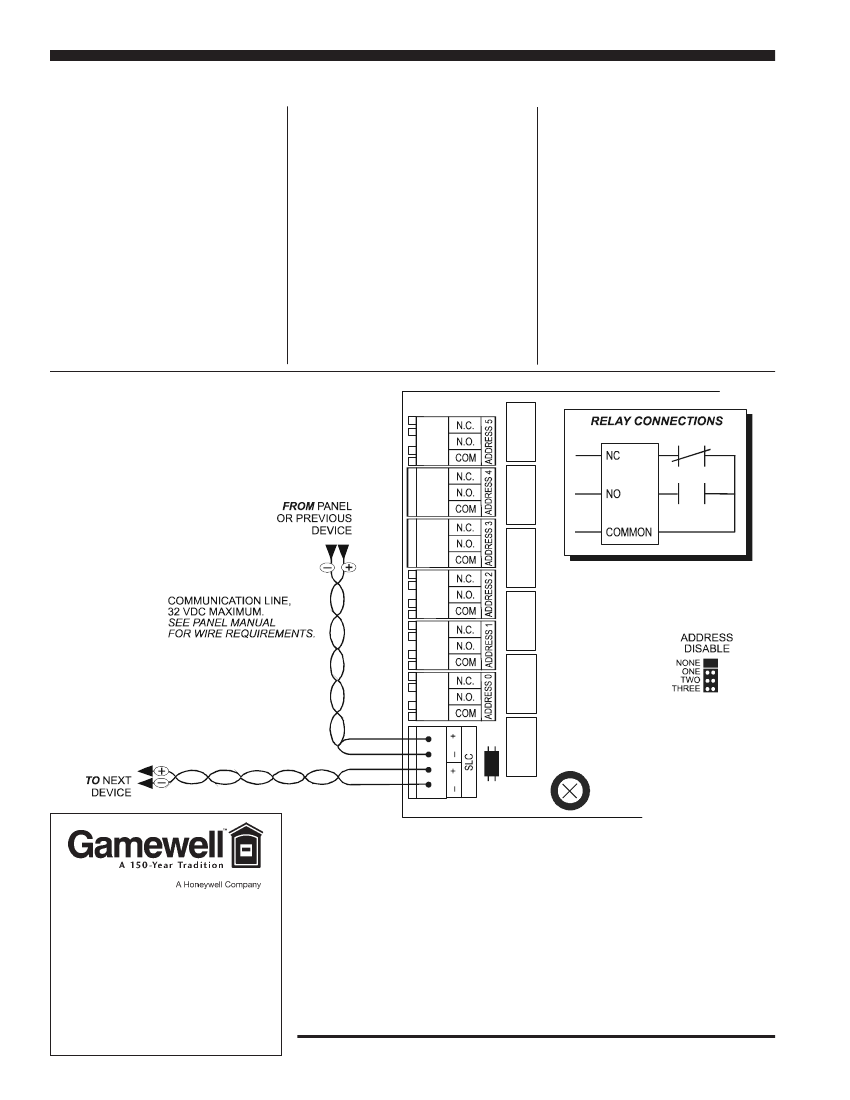

Wiring Diagram
6926wir1.wmf
Gamewell
12 Clintonville Road
Northford, CT 06472-1610
Phone: 203-484-7161
Fax: 203-484-7118
www.gamewell.com
A Honeywell Company
© 2004 Gamewell
Specifications and wiring information are provided for information only and are believed
to be accurate. Gamewell assumes no responsibility for their use.
Data and design are subject to change without notice. Installation and wiring
instructions shipped with the product shall always be used for actual installation. For
more information, contact Gamewell.
Page 2 of 2
RCM-SS
CS-2469
10/25/04
