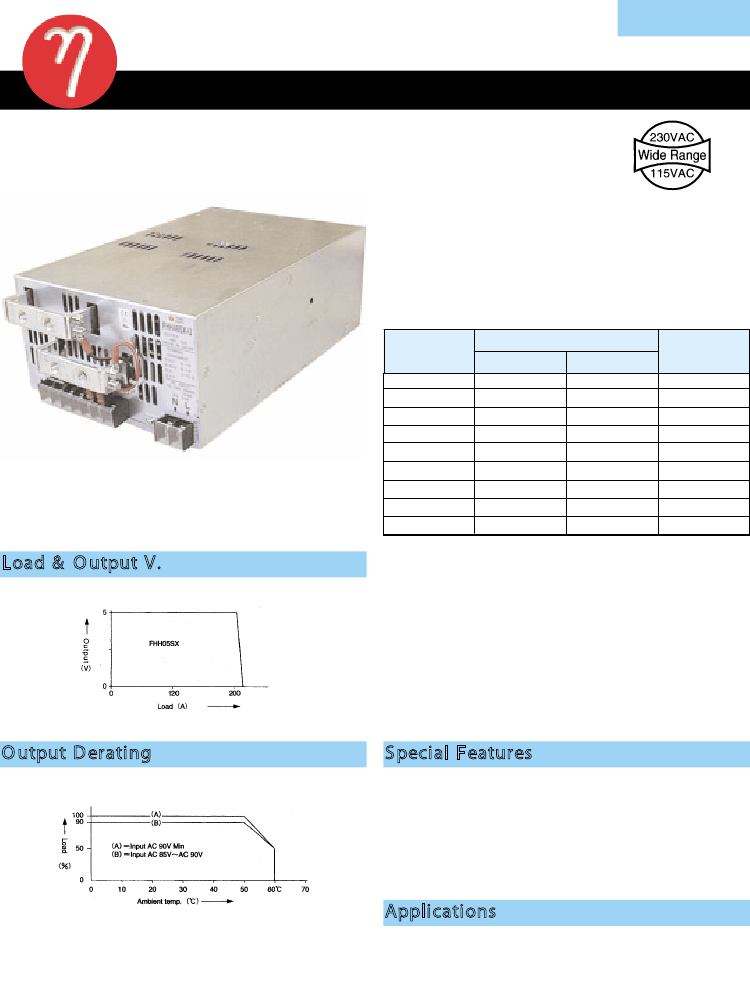

ETA-USA
1KW
85-264VAC
High Quality Switching Power Supplies
Power - Factor Correction
FHH-SX-U1
Output Table
M
ODEL
FHH 3.3SX
FHH 05SX
FHH 06SX
FHH 12SX
FHH 15SX
FHH 24SX
FHH 30SX
FHH 36SX
FHH 48SX
SERIES
FHH-SX (85~264V)
O
UTPUT
V
OLTAGE
C
URRENT
3.3V
5V
6V
12V
15V
24V
30V
36V
48V
200A
200A
167A
88A
70A
44A
35A
29A
22A
163X250X93 (mm
)
E
FFICIENCY
68%
76%
78%
82%
81%
83%
83%
83%
83%
Load & Output V.
This-Series is a new generation of powersupplies. Its the
latest design following the international standard and mar-
ket demands. This type of powersupply has all in one:
Power factor correction, low line distortion according to EN
60555-2, electro magnetic interference (EMI) complies
with EN 55022 B, FCC level B. Safety complies with EN
60950-1, UL 1950, CSA 234. High efficiency and power fac
tor correction is an optimal combination of good cost-per-
formance for both end-users and power production com-
panies.
O utput Derating
Special Features
1. Power factor 115Vac=0.99 230Vac=0.99
2. Harmonics acc. to EN 60555-2 IEC1000-3-2 3. N+1
Redundant
4. Parallel operation
5. EMI : complies with EN 55022 B, FCC class B
6. Safety : complies with to IEC 950 (approvals pending)
Applications
Process control, Office-Equipment, Computer Peripherals,
Telecommunication, Industrial Electronics and Machines,
Household-Equipment
FHH-SX SPECIFICATION
G
EN ERAL
S
PECIFICATIO N
Power factor correction
Over-current protection
Over-voltage protection
Remote control
Remote sensing
Switching frequency
Withstand voltage
Insulation resistance
Leakage current
Weight
:Active filter circuit with boost converter
:Constant current limiting
:Output shutdown
:Possible
:Possible
:130KHz Fixed
:(Input-Output)
:AC3000V(1Minute)
:(Input-Chassis) :
AC2500V (1Minute)
:(Output-Chassis) :
AC 500V (1Minute)
:(Input-Output-Chassis):50M MIN.
:AC 115VAC, 50Hz, 25°C 270A
AC 230VAC, 50Hz, 25°C 550A
:3.9Kg
I
N PUT
Voltage nominal
Voltage range
Power factor & harmonic
correction range
Frequency
Current on full road
Inrush current
Phase
:115~230VAC
:85~264VAC
:85~255VAC
:50/60Hz
:16A / 8A(Input 115V/230VAC)
:18A MAX.(Input 115VAC), 36A
MAX. (Input 230VAC)
:Single
O
UTPUT
Adjustable voltage
Ripple & noise
Input regulation
Load regulation
Temperature coefficient
Drift / Time effect
Rise up time
Hold-up time
:± 10%, typical
:(Output V x 1%) + 100mVp-p MAX.
:0.5%MAX
:1.0%MAX
:0.03% / °C
:(Output V X 0.5%)+15mV/8H (After 1 H)
:500mS typ. @ 115 VAC in / 250mS
typ. @230 VAC in
:20mS MIN (at 25°C, Rated-Input-
Output)
E
N VIRO N M EN T
Operating temperature
Storage temperature
Humidity
Vibration
Shock
:-5 ~+50°C (See output derating
curve)
:-20~+85°C
:85%
:(5~10Hz) Amplitude (peak to peak)
10mm(constant) (10~55Hz)
Acceleraton 2G (constant) X, Y, Z
:30G

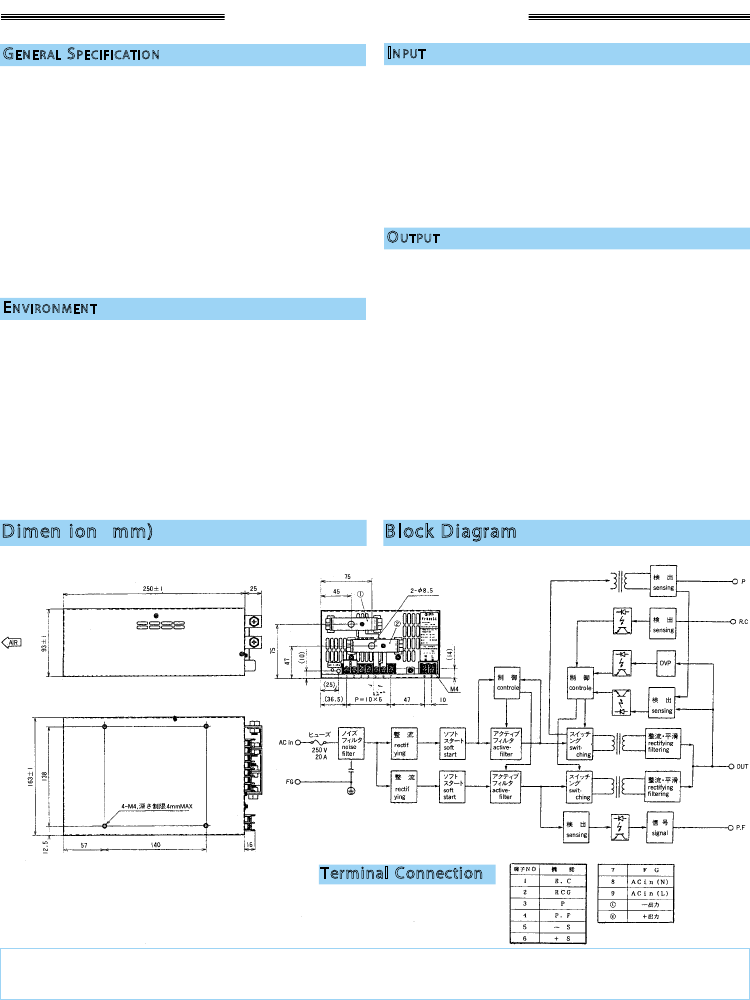

Dimension (mm)
B lock Diagram
Terminal Connection
