Edition 10/2016
HMI Components
Series
Characteristics
Functions
41
Market segments
The rectangular design of the Series 41
(18 x 24 mm) makes it especially suited:
■■
■■
The Series 41 incorporates the
following functions:
■■
■■
The EAO Series 41 is especially suited
for applications in the segment:
■■
Raised design
PCB (with adaptor)
Indicator
Illuminated pushbutton
Machinery and Automation

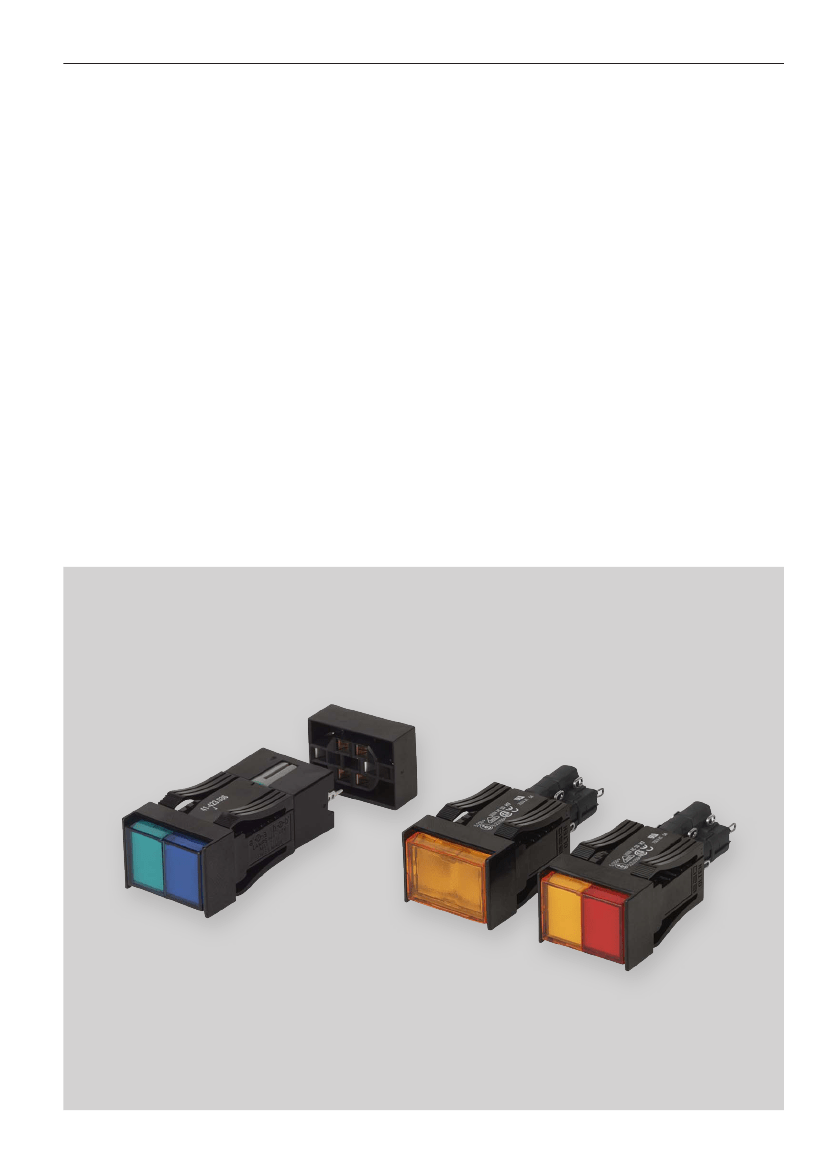

The series features a compact double-lit
element that can be fitted from the front
as a snap-on module.
Please refer to the EAO website to obtain detailed information regarding this series
www.products.eao.com
Configure a product to your exact needs and request a quotation.
Content
Overview
Raised design
Indicator
Illuminated pushbutton
Accessories
Drawings
Technical data
Marking
Guidelines for use
Index
41
4
5
7
14
15
17
18
19
3
41

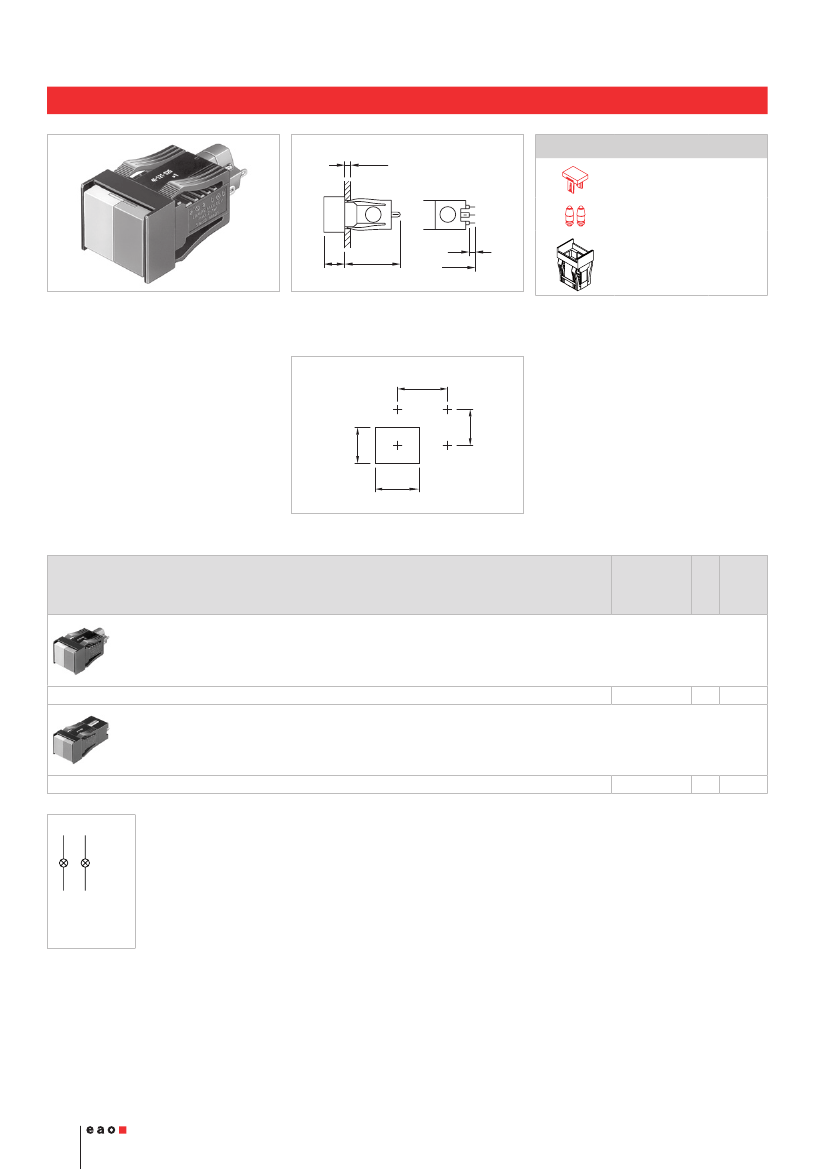

Raised design
Indicator, IP 40
3 max.
Equipment consisting of (schematic overview)
Lens
page 7
L
H
3
2 LEDs
page 10
10.5
27.5
43.5
Actuator
Product can differ from the current configuration.
Dimensions [mm]
L = Solder terminal,
H = Universal terminal 2.0 x 0.5 mm
Each Part Number listed below includes all the black
components shown in the 3D-drawing.
To obtain a complete unit, please select the red com-
ponents from the pages shown.
Mounting cut-outs [mm]
Terminal
Part No.
Wiring
diagram
1
1
Weight
Indicator, Front dimension 18 x 24 mm
Solder
41-040.005
0.009 kg
Indicator, Front dimension 18 x 24 mm
Universal 2.0 x 0.5 mm
41-041.006
0.009 kg
x1+ x2+
x3 - x4-
Wiring diagram 1
4

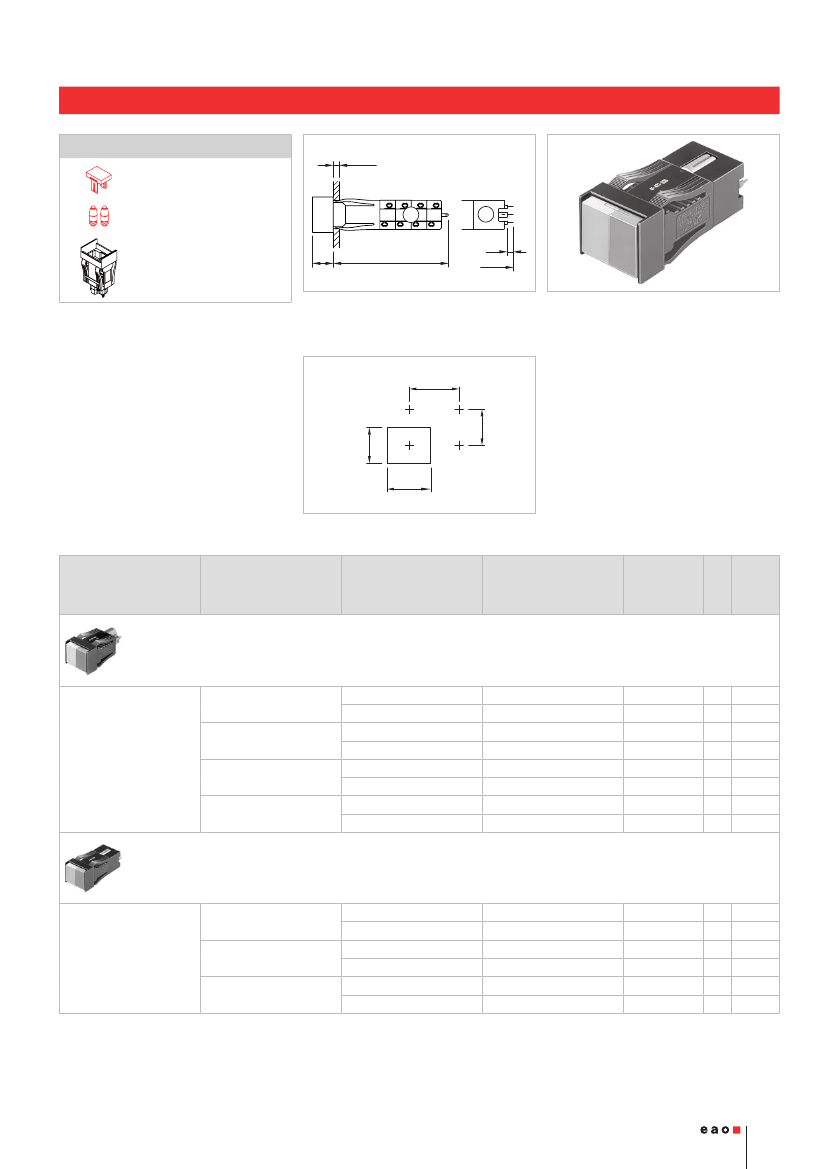

Raised design
Illuminated pushbutton, IP 40
41
Equipment consisting of (schematic overview)
Lens
page 7
3 max.
2 LEDs
page 10
L
H
3
43.5
Actuator
10.5
36.5/44/51.5/59
Each Part Number listed below includes all the black
components shown in the 3D-drawing.
To obtain a complete unit, please select the red com-
ponents from the pages shown.
Dimensions [mm]
L = Solder terminal,
H = Universal terminal 2.0 x 0.5 mm
Product can differ from the current configuration.
Mounting cut-outs [mm]
Switching system
Contacts
Switching action
Terminal
Part No.
Wiring
diagram
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Weight
Illuminated pushbutton, Front dimension 18 x 24 mm
Snap-action switching element
1 NC + 1 NO
B
C
2 NC + 2 NO
B
C
3 NC + 3 NO
B
C
4 NC + 4 NO
B
C
Solder
Solder
Solder
Solder
Solder
Solder
Solder
Solder
41-121.0252
41-261.0252
41-122.0252
41-262.0252
41-123.0252
41-263.0252
41-124.0252
41-264.0252
0.011 kg
0.011 kg
0.012 kg
0.013 kg
0.014 kg
0.014 kg
0.015 kg
0.015 kg
Illuminated pushbutton, Front dimension 18 x 24 mm
Low-level element
2 NO
B
C
2 NC
B
C
1 NC + 1 NO
B
C
Contacts: NC = Normally closed, NO = Normally open
Switching action: B = Momentary, C = Maintained
Universal 2.0 x 0.5 mm
Universal 2.0 x 0.5 mm
Universal 2.0 x 0.5 mm
Universal 2.0 x 0.5 mm
Universal 2.0 x 0.5 mm
Universal 2.0 x 0.5 mm
41-421.036
41-461.036
41-422.036
41-462.036
41-423.036
41-463.036
0.014 kg
0.014 kg
0.014 kg
0.014 kg
0.014 kg
0.014 kg
