Plug and Replace Industrial Measurement Development Platform

Overview

This platform uses the USB port to design an 8-way full-speed USB host port microprocessor, and uses the USB port to realize the replacement of the connection measurement module at any time. Using NuMicro® NUC980 with NuMicro® NUC029SEE USB device measurement module provides a complete development platform and can shorten the overall development cycle.

Program features

-	8 Prots Freely replace the USB measurement module
-	Linux OS
-	Arm® Cortex® - M0 USB Device Reference Design
-	Industrial temperature specifications - 40 ℃ ~ 85 ℃
-	Supports 10/100 Ethernet

MCU Features

NUC980 (32-bit Arm926EJ-S)
-	8 Ports USB full speed host
-	LQFP package built-in 64 MB DDR memory
-	10 / 100 Mbps Ethernet
NUC029SEE (32-bit Arm® Cortex® - M0)
-	USB full speed device/no external crystal oscillator required
-	Support 5V I/O
-	128KB Flash / 16KB RAM

System diagram

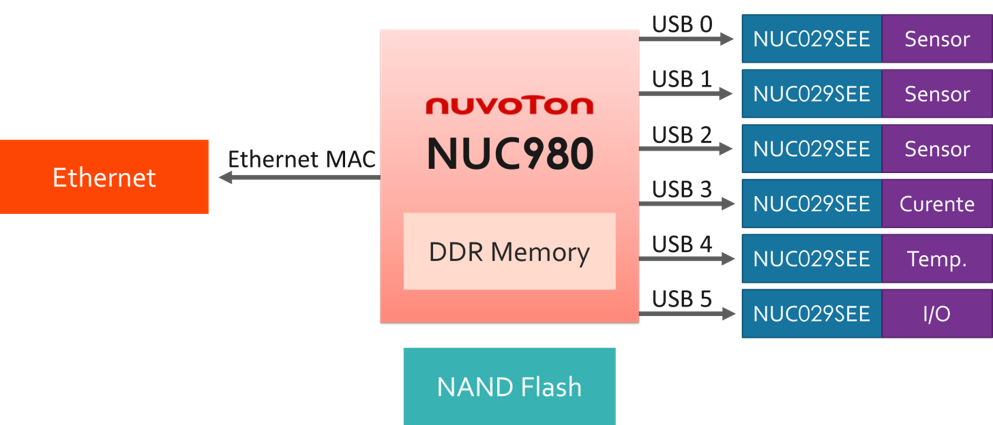

Blockdiagram
