Phablet/Tablet

Overview

Today's smartphone/phablet/tablet designs require high-quality music and audio playback with low power consumption.

Nuvoton's mono and stereo Class D audio amplifier products can provide excellent audio quality, high efficiency, high output power, and low quiescent current, and are suitable for portable battery-driven applications.

Its important functions include

~3W power output per channel with 4Ω load.
Over 90% power efficiency
Low current shutdown mode speaker protection
Excellent EMI performance and spread spectrum switching technology.

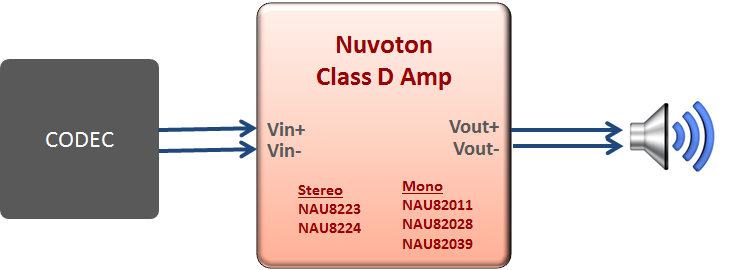

Blockdiagram
