OM13790 Host and Dock: USB Type-C Shield Board Gen 2 with DisplayPort Alt Mode

OM13790 Host & Dock: USB Type-C Shield Board Gen 2 with Display Port Alt Mode

Overview

NXP ^® is launching a Generation 2 USB Type-C Shield with display port alt mode support!

The NXP Gen 2 USB Type-C shield works with the MCUXpresso SDK and USB power delivery stack, allowing you to choose from Kinetis ^® , LPC and i.MX RT development platforms via the USB Type-C connector. And it uses NXP’s easy-to-use hardware and MCUXpresso software and tools (the only similar solution on the market) to shorten the learning curve. It enables Type-C to seamlessly support Display Port alt mode and provides extensive overvoltage protection services for a simple and efficient design.

Use our plug-and-play USB Type-C development kit (including USB Type-C Shield Gen 2 motherboard and docking board, AC/DC adapter to power the shield expansion board, MCUXpresso SDK with USB power delivery stack, and Hardware and Software Setup Guide) to get started developing quickly. Get and experience the complete USB Type-C development kit.

MoreCollapse

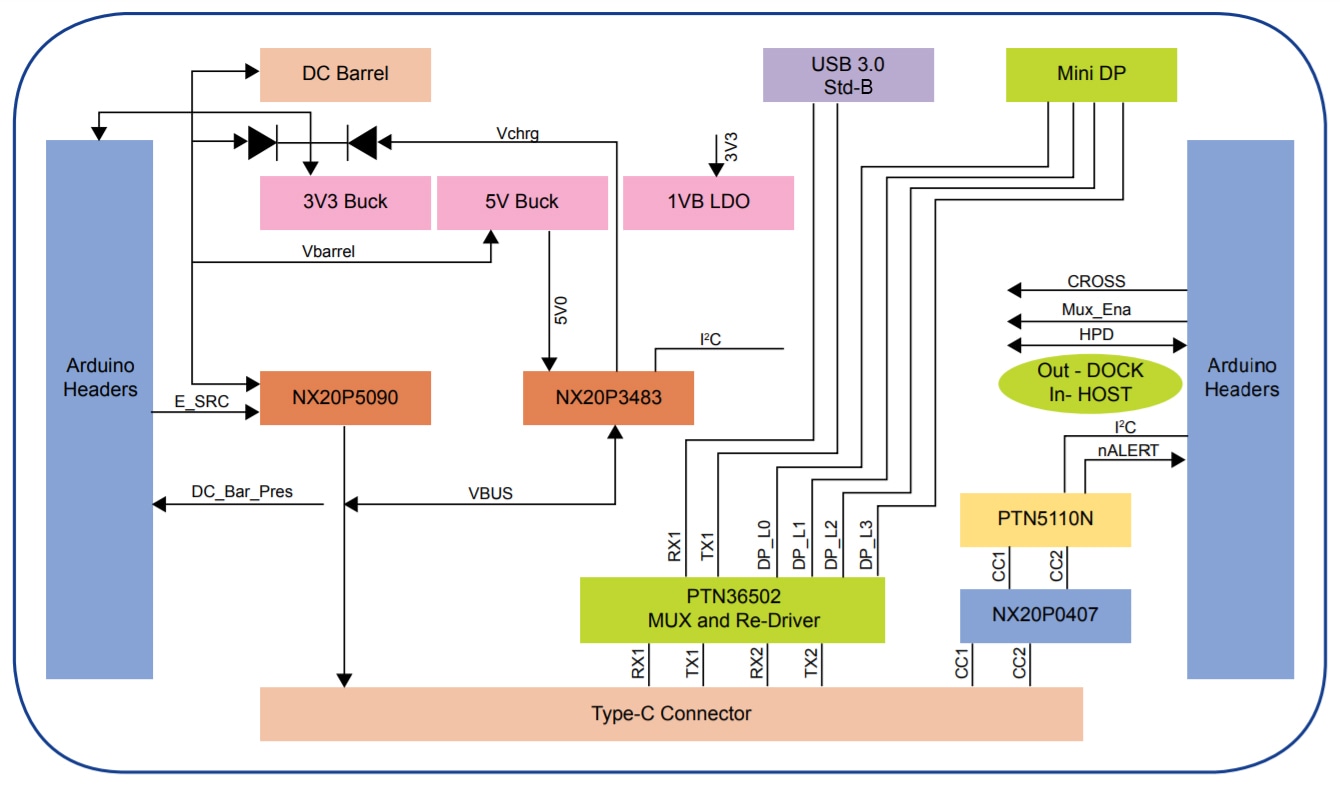

Blockdiagram
