Digital MEMS microphone expansion board based on MP34DT06J for STM32 Nucleo

X-NUCLEUS-CCA02M2

Overview

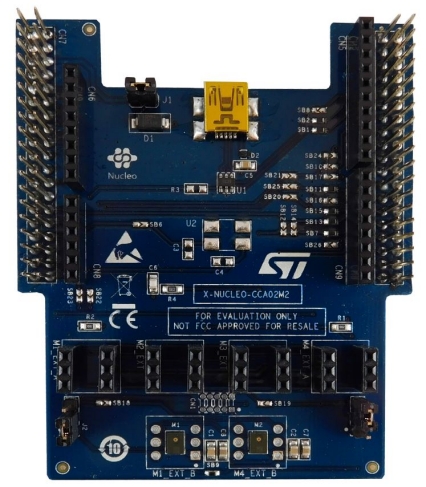

The X-NUCLEO-CCA02M2 expansion board has been designed around MP34DT06J digital MEMS microphone.

It is compatible with the ST morpho connector layout and with digital microphone coupon boards such as STEVAL-MIC001V1, STEVAL-MIC002V1 and STEVAL-MIC003V1.
The X-NUCLEO-CCA02M2 embeds two MP34DT06J microphones and allows synchronized acquisition and streaming of up to 4 microphones through I²S, SPI, DFSDM or SAI peripherals.
It represents a quick and easy solution for the development of microphone-based applications as well as a starting point for audio algorithm implementation.

Main features

2 on-board MP34DT06J digital MEMS microphones
6 slots to plug in digital microphone coupon boards such as STEVAL-MIC001V1, STEVAL-MIC002V1 and STEVAL-MIC003V1
Synchronized acquisition and streaming of up to 4 microphones
Free comprehensive development firmware library and audio capture plus USB streaming sample application compatible with STM32Cube
Compatible with STM32 Nucleo boards
Equipped with ST morpho connector (upwards and downwards)
Equipped with Arduino UNO R3 connector (upwards) to allow multiple boards
RoHS and WEEE compliant
