LSM6DSOX adapter board, standard DIL24 socket

STEVAL-MKI197V1

Overview

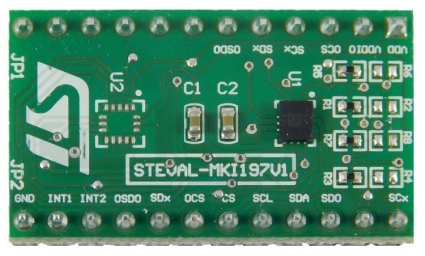

The STEVAL-MKI197V1 is an adapter board designed to facilitate the evaluation of MEMS devices in the LSM6DSO product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.

The STEVAL-MKI197V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete LSM6DSOX pin-out and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109V2 and STEVAL-MKI109V3 with high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications

Main features

Complete LSM6DSOX pinout for a standard DIL 24 socket
Fully compatible with STEVAL-MKI109V3 motherboard
Changing the resistor settings is also compatible with the STEVAL-MKI109V2 motherboard
WEEE compliant
RoHS compliant
