350 W-48 V Demonstration Board using 1x STAC2942B for FM Broadcast Application (VHF Amplifier 87.5-108 MHz)

STEVAL-TDR028V1

Overview

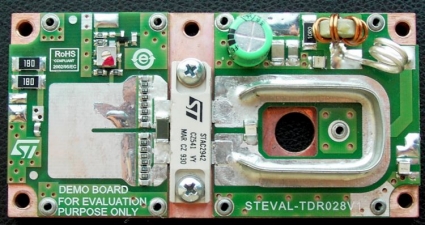

The STEVAL-TDR028V1 is an RF broadband power amplifier intended for FM broadcast radio transmitters over the 87.5 to 108 MHz band, using an STAC2942B gold metallized N-channel MOS field-effect transistor.

The STEVAL-TDR028V1 is designed in cooperation with InnovAction S.r.l in Italy.

Main features

Excellent thermal stability
Frequency: 87.5 - 108 MHz
Supply voltage: 48 V
Output power: 370 W min.
Gain: 20 dB typ.
Efficiency: 77% typ.
Harmonics: - 30 dBc max.
Gain flatness: ± 0.7 dB max.
