iNEMO inertial module kit based on ISM330DHCX

Overview

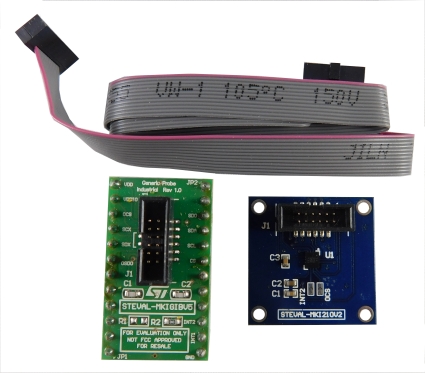

The STEVAL-MKI210V2K evaluation kit includes the STEVAL-MKI210V2 main board and the STEVAL-MKIGIBV5 adapter board. The main board embeds the ISM330DHCX 3D accelerometer and 3D gyroscope sensor and is connected to the adapter board through a flat cable to render it compatible with the STEVAL-MKI109V3 motherboard.

The kit provides the complete ISM330DHCX pin-out and comes ready-to-use with the required decoupling capacitors on the V_DD power supply line.
The ISM330DHCX sensor is soldered precisely in the center of the board and double-sided adhesives are provided to allow users to conveniently mount the board on their equipment.
The STEVAL-MKIGIBV5 can be plugged into a standard DIL 24 socket. This adapter is supported by the STEVAL-MKI109V3 motherboard with high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico-GUI), or dedicated software routines for customized applications.

All features

User friendly ISM330DHCX board
Complete ISM330DHCX pin-out for a standard DIL 24 socket
Double-sided adhesives included for easy mounting on equipment to be measured
Fully compatible with STEVAL-MKI109V3 motherboard
RoHS compliant
