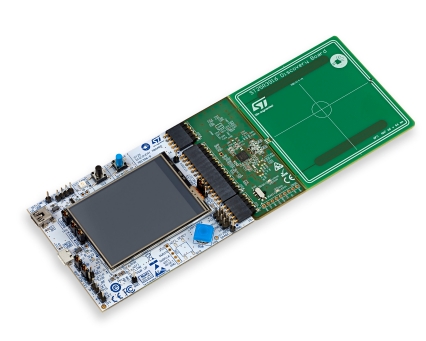

ST25R3916 High Performance NFC Universal Device and EMVCo Reader Development Kit

ST25R3916-DISC

Overview

The ST25R3916-DISCO kit allows the user to evaluate the features and capabilities of the ST25R devices, a series of high performance HF readers.

The ST25R3916-DISCO kit comes with application notes, software applications, drivers, BOM (bill of materials), board schematics, Gerber files and firmware schematics. These documents are downloadable from www.st.com.

Main features

ISO 18092 (NFCIP-1) active and passive initiator and target modes
NFC Forum NFC-A, NFC-B, NFC-F and NFC-V reader
ISO 14443A, ISO 14443B and ISO15693 reader
FeliCa™ reader
Support of all five NFC Forum tag types in reader mode
NFC Forum Type 3 tag (NFC-F) host card emulation
NFC Forum Type 4A tag (NFC-A) host card emulation
Stream modes to implement other standard and custom protocols

Integrated capacitive sensing system for low power detection of tag presence
Integrated inductive sensing system for low power detection of tag presence using phase or amplitude measurement
High output power
User selectable and automatic gain control
Serial peripheral interface (SPI) up to 10 Mb/s
I2C with up to 400 kbit/s in Fast-mode, 1 Mb/s in Fast-mode Plus
Automatic antenna tuning (AAT) via variable capacitor
