Standard I²C and SPI EEPROM memory expansion board based on M24xx and M95xx series for STM32 Nucleo

X-NUCLEUS-EEPRMA1

Overview

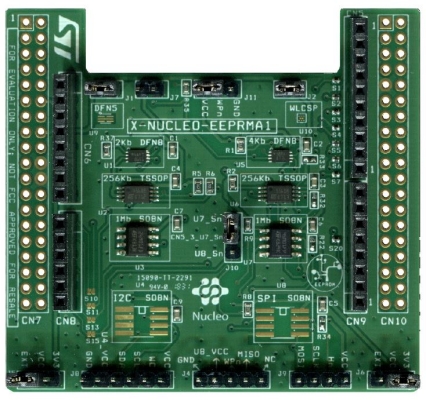

The X-NUCLEO-EEPRMA1 expansion board is designed for M24xx series I²C and M95xx series SPI EEPROM for data reading and writing.

The expansion board acts as an external storage device that can be used to store data such as manufacturing traceability, calibration, user setting, error flags, data log and monitoring data to make applications more flexible and accurate.
The X-NUCLEO-EEPRMA1 expansion board is compatible with the Arduino UNO R3 connector pin assignment and can be easily plugged to any STM32 Nucleo development board. You can mount the ST morpho connectors if required.

Main features

Up to 1-Mbit serial I²C bus embedded EEPROM
Up to 1-Mbit SPI bus embedded EEPROM with high-speed clock
Easy portability across different MCU families
Equipped with Arduino™ UNO R3 connector
Compatible with STM32 Nucleo boards
Free comprehensive development firmware library and sample implementation available when the X-NUCLEO-EEPRMA1 expansion board is plugged on top of a NUCLEO-F401RE or NUCLEO-L053R8 development board
Developer can choose and solder an EEPROM to be tested using the evaluation software provided
RoHS and WEEE compliant
