SPIRIT1 - Low Data Rate Transceiver - 868 MHz - Daughter Board - Range Extender

STEVAL-IKR001V8D

Overview

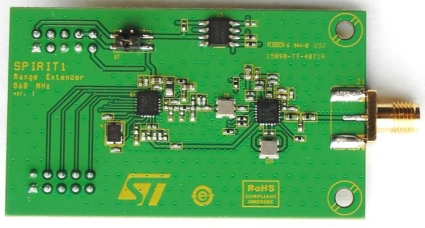

The STEVAL-IKR001V8D demonstration board is based on the SPIRIT1, a sub GHz low power, low data rate transceiver suitable for ISM bands and wireless M-BUS systems.

The STEVAL-IKR001V8D includes an external power amplifier from SkyWorks^®, which allows the application to reach +27 dBm (500 mW) output power.

Main features

SPIRIT1 low power sub GHz transceiver in a standalone RF module tuned for 868 MHz band with external power amplifier
Associated SPIRIT1 development kit, including documentation, firmware for STM32L and GUI
Suitable for wireless M-BUS systems
Modulation schemes: 2-FSK, GFSK, MSK, GMSK, OOK, and ASK
Air data rate from 1 to 500 kbps
TCXO for narrow band requirements
Max P_OUT+27 dBm
Excellent receiver sensitivity (up to -123 dBm)

TX power consumption @ +27 dBm: 350 mA
SAW filter in reception path to prevent interference from out-of-band signals
SkyWorks^®SEXXXXSL power amplifier
Low duty cycle RX/TX operation mode
Automatic acknowledgment, re-transmission and timeout protocol engine
AES 128-bit encryption co-processor
SPI interface for microcontroller
RoHS compliant
