Multi-phase electricity meter daughter board based on STPMS2 smart sensor device

STEVAL-IPE014V1

Overview

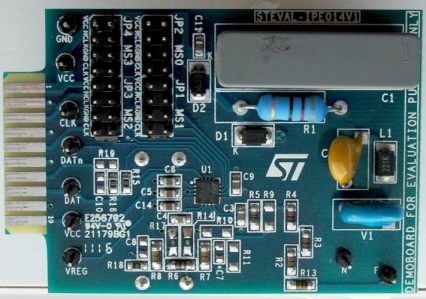

The STEVAL-IPE014V1 is a daughterboard based on the STPMS2 "smart sensor" device, and is designed for use with the STPMC1-based STEVAL-IPE010V1 motherboard. Together the system provides a complete, ready-to-use energy meter application. When connected to the motherboard, each STEVAL-IPE014V1 daughterboard serves a single phase, converting and multiplexing the voltage and current information and sending the stream to the STPMC1 energy calculator IC.

Main features

Modular and programmable
Supports:
- 3-phase, 4-wire RSTN, 4-system RSTN (tamper); extra module required
- 3-phase, 4-wire RSTN, 3-system RST
- 3-phase, 3-wire RST_, 3-system RST_(tamper)
- 3-phase, 3-wire RST_, 2-system R_T_(Aron)
- 2-phase, 3-wire _STN, 2-system _ST_(America)
- 1-phase, 2-wire _TN, 2-system _ST_(tamper)
- 1-phase, 2-wire _TN, 1-system _T_
4 LED indicators to display:
- Power
- No load condition
- Tamper detection
- Reverse current direction
Embedded capacitive power supply
Isolation of current channel
RoHS compliant
