Simulated wall dimmer for CFL/LED lamps based on TS820 (US version 110 V)

STEVAL-ILD003V2

Overview

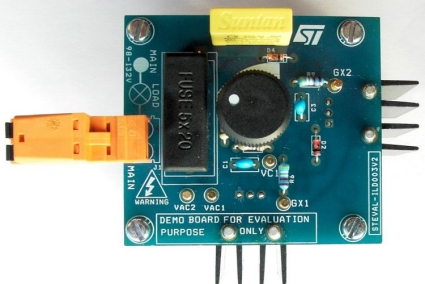

The STEVAL-ILD003V2 demonstration board is designed to propose a low-cost analog dimmer topology using a sensitive SCR TS820-600FP. The dimmer can drive typical low-consumption lamps, particularly CFL and LED dimmable lamps.

Through-hole technology is used for the most important components such as LC filter, gate resistor, turn-on delay capacitor, etc., in order to allow board modification, if needed.
The STEVAL-ILD003V2 eliminates flickering thanks to its continuous current applied through the sensitive SCR gate. This dimmer could easily replace a standard low-cost analog Triac light dimmer using a Diac-controlled circuit.

Main features

Operation for 2-wire wall dimmer
Leading-edge control (compatible with all lamps commonly found on the market)
Operation on 120 V line rms voltage (98 to 132 V) and 50 Hz or 60 Hz line frequency
Dimmable power range with halogen, CFL and LED lamps (with 27 °C/W heatsinks mounted on SCRs12:
- 3 to 350 W for 110/120 V rms line
Maximum operating ambient temperature:60 °C
Power efficiency @ 350 W / 120 V > 98.5%
Standby losses @ 120 V
RoHS compliant
Compliance with EMC standards
- IEC 61000-4-4: criteria A for more than 4 kV
