Discovery Kit for STM32L562QE MCU

STM32L562E-DK

Overview

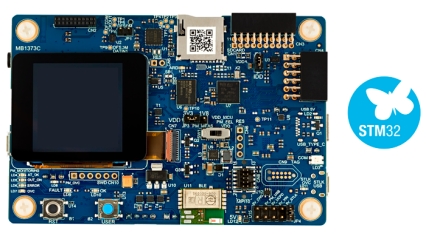

The STM32L562E-DK Discovery kit is a complete demonstration and development platform for Arm^® Cortex^®-M33 with Arm^® TrustZone^® and ARMv8-M mainline security extension core-based STM32L562QEI6QU microcontroller, with 512 Kbytes of Flash memory and 256 Kbytes of SRAM.

The STM32L562E-DK Discovery kit makes use of the STM32L562QEI6QU innovative ultra-low-power oriented features to enable prototyping for many wearable or sensor applications, with state-of-the-art energy efficiency, secure boot, and TrustZone-based software isolation.
For even more user-friendliness, the on-board STLINK-V3E debugger provides out-of-the-box loading and debugging capabilities, as well as USB Virtual COM port bridge.

Main features

STM32L562QEI6QU microcontroller featuring 512 Kbytes of Flash memory and 256 Kbytes of SRAM in BGA132 package
1.54" 240 × 240 pixel-262K color TFT LCD module with parallel interface and touch-control panel
USB Type-C™ Sink device FS
On-board energy meter: 300 nA to 150 mA measurement range with a dedicated USB interface
SAI Audio CODEC
MEMS digital microphones
512-Mbit Octal-SPI Flash memory
Bluetooth^® V4.1 Low Energy module

iNEMO 3D accelerometer and 3D gyroscope
2 user LEDs
User and reset push-buttons
Board connectors:
- USB Type-C™
- microSD™ card
- Stereo headset jack including analog microphone input
- JTAG debugger
- DPM dynamic-power measurement interface for external device
- STMod+ expansion connector with fan-out expansion board for Wi‑Fi^®, Grove and mikroBUS™ compatible connectors
- Pmod™ expansion connector
- Audio MEMS daughterboard expansion connector
- ARDUINO^® Uno V3 expansion connector
Flexible power-supply options: ST-LINK, USB V_BUS or external sources
On-board STLINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
Comprehensive free software libraries and examples available with the STM32CubeL5 MCU Package
Support of a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil^®, and STM32CubeIDE
