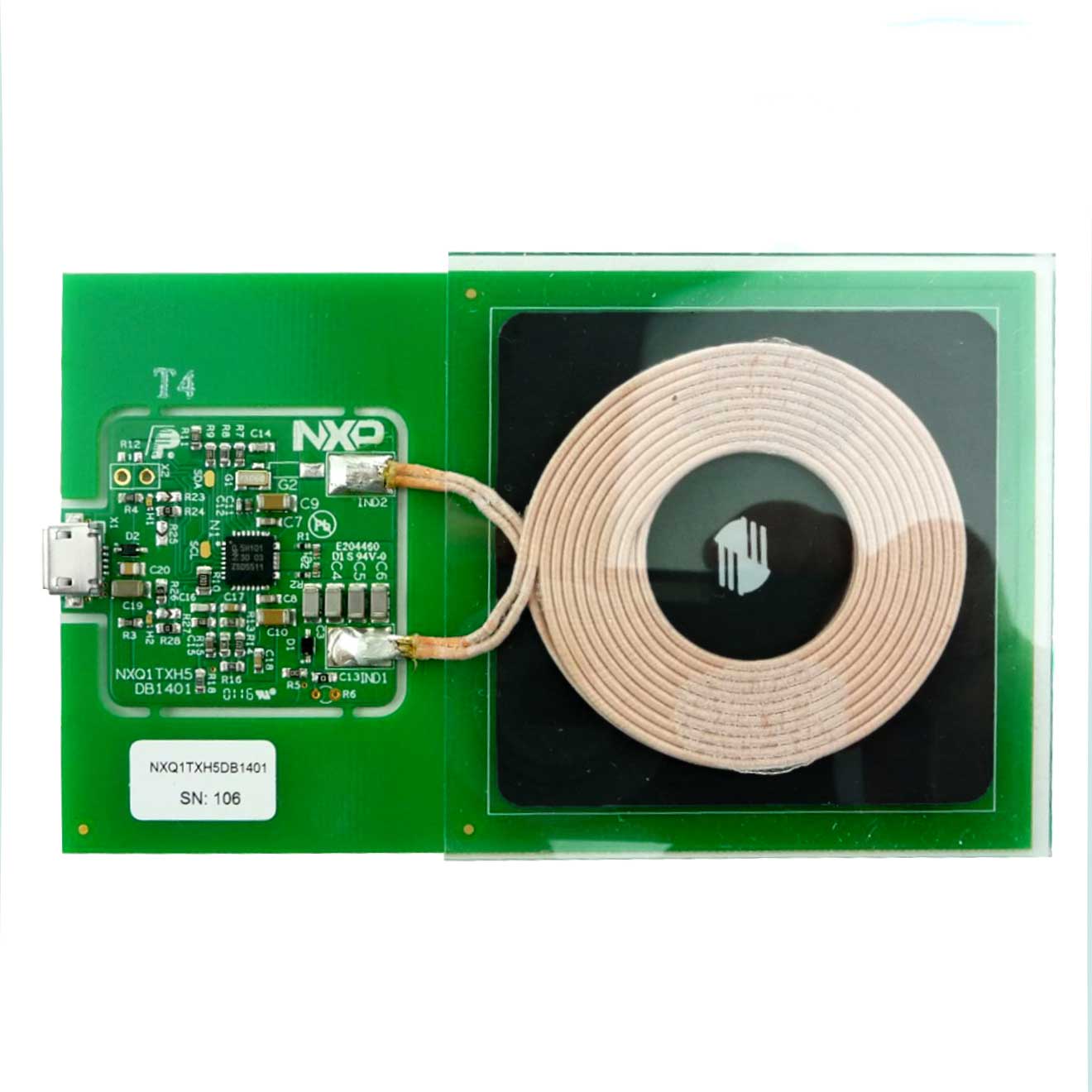

The NXQ1TXH5DB1401 demo board is a slim-line sized and cost effective WPC 1.2 Qi-compliant wireless charger demo. It offers a fully integrated solution that includes a 5 V full-bridge power stage as defined in Wireless Power Consortium (WPC) 5 V Qi standards A5, A11, A12 and A16.
The board operates from an USB power supply and uses Smart Power Limiting (SPL) to adjust the output power automatically to compensate for power-limited supplies. LED outputs and a buzzer output are available for the user interface. The LED outputs feature a number of blinking modes.
