1A, 60V Vin, LED6000 based buck LED driver board

STEVAL-ILL078V1

Overview

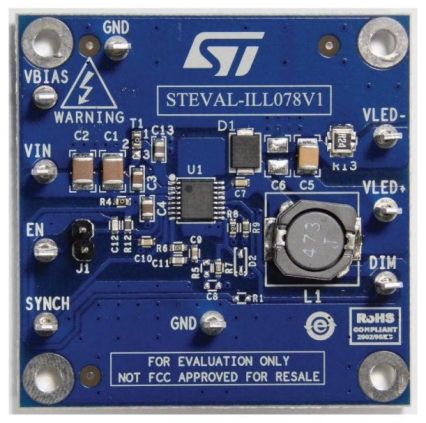

The STEVAL-ILL078V1 product evaluation board is based on the LED6000 monolithic current source for high power LED driving. Digital dimming is implemented by driving the dedicated DIM pin. Low drop-out operation with almost 100% duty cycle can be achieved. The LED6000 is a 61 V asynchronous switching regulator with embedded power MOSFET, designed to source up to 3 A of DC current depending on the application conditions. The 250 mV typical R_SENSE voltage drop, the embedded switch-over feature on the VBIAS pin and light load management (pulse skipping) are intended to maximize power conversion efficiency across the entire load range.

The current limit threshold and the switching frequency are adjustable for application optimization. The device includes an internal 250 kHz oscillator that can be externally adjusted up to 1.5 MHz. The size of the overall application is minimized thanks to its high switching frequency and compatibility with ceramic output capacitors. Two LED6000 regulators can be synchronized in a 180° out-of-phase configuration for reduced total input RMS current.

Main features

4.5 V to 60 V input voltage
Step-down conversion
1 A programmed LED current
500 kHz switching frequency
Digital dimming
Uses ceramic output capacitors
180° out-of-phase synchronization available
Auto-recovery overcurrent and thermal protection
RoHS compliant
