2 kW three-phase motor control evaluation board with STGIPS20C60 IGBT smart power module

STEVAL-IHM028V2

Overview

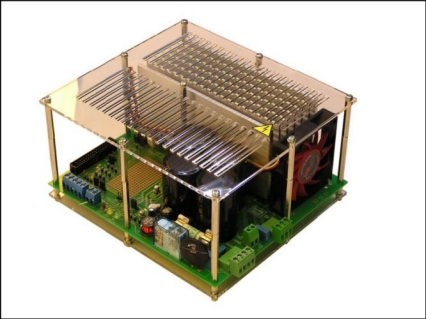

The goal of the STEVAL-IHM028V2 product evaluation board is to present a universal, fully tested and populated design consisting of a 3- phase inverter bridge based on the 600 V, 17 A intelligent power module STGIPS20C60. The IPM itself consists of short-circuit rugged IGBTs with negative temperature co-efficiency. It also contains a wide range of auxiliary functions like undervoltage lockout and smart shutdown.

Thanks to these advanced characteristics, the system has been specifically designed to achieve accurate and fast conditioning of the current feedback, matching the typical requirements for field oriented control (FOC).
This board can be used to evaluate a wide range of applications such as HVAC (air conditioners), power white goods and high-end single-phase power tools.

Main features

Complete solution for a 2 kW power inverter
HV supply mode: voltage 90 VAC to 285 VAC or direct DC line 125 V DC to 400 V DC
Input voltage range extended to +400 V, for PFC compliance
Input inrush limiter with bypassing relay
Brake feature with overvoltage comparator
Single- or three-shunt resistor current sensing method
Hall sensor or encoder input

Tachometer input
Overtemperature and overcurrent hardware protection
Active fan with automatic overtemperature switching
Compact and safe design
Universal conception for further evaluation with bread board and testing pins
RoHS compliant
