Stepper motor driver with L6208Q

EVAL6208Q

Overview

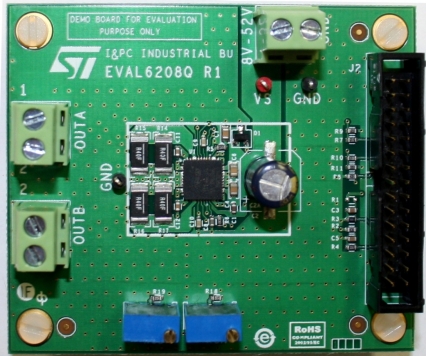

The EVAL6208Q device is a stepper motor driver board allowing the user to test the L6208Q functions.

The board can be driven using the STEVAL-PCC009V2 demonstration board and the PractiSPIN 2 evaluation software.

Main features

Voltage range from 8 to 52 V
Phase current up to 2.5 A_r.m.s.
Adjustable PWM current control OFF-time
Logic inputs 5 V / 3.3 V compliant
Small application footprint with high thermal performance
Suitable for use in combination with PractiSPIN™ 2 software
