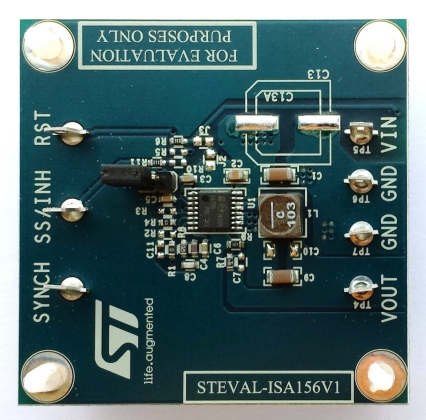

38V, 2A synchronous step-down switching regulator evaluation board based on L6986

STEVAL-ISA156V1

Overview

STEVAL-ISA156V1 L6986-based 38 V, 2 A synchronous rectification buck switching regulator with 30 μA quiescent current evaluation board. It can be used in 12V and 24V buses, programmable logic controllers (PLCs), decentralized smart nodes and sensors, and low noise applications (LNM).

Main features

4 V to 38 V operating input voltage
Low power mode or low noise mode
30 μA IQ at light load (LCM V _OUT = 3.3 V)
5 μA _IQ-SHTDWN
Adjustable fSW (250 kHz - 2 MHz)
Output voltage adjustable from 0.85 V to VIN
Embedded output voltage monitoring
Synchronize

Adjustable soft start time
Internal current limit
Overvoltage protection
Output voltage sorting
Peak Current Mode Architecture
R _{DS(on) HS} = 180 mΩ, R _{DS(on) LS} = 110 mΩ
Thermal shutdown
