12V-15W quasi-resonant flyback converter based on VIPER35HD

STEVAL-ISA171V1

Overview

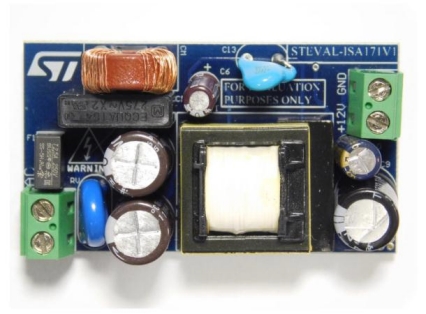

The STEVAl-ISA171V1 implements a 15 W power supply designed in quasi resonant flyback topology for a wide-range AC input voltage. Its key features are its small size and minimal bill of material, high efficiency and low standby consumption.

The core of the application is the VIPER35, the quasi-resonant offline high voltage converter from the VIPerPLUS product family.
The VIPER35 integrates an 800 V rugged power MOSFET with PWM current-mode control.
Extremely low consumption under no-load conditions is ensured thanks to burst mode operation that reduces the average switching frequency and minimizes all frequency-related losses.
The VIPER35 operates in quasi resonant mode, a feature that helps to meet the EMI standards.

Main features

Wide input voltage range: 90 V_AC to 264 V_AC
Output voltage: 12 V
Output current: 1.25 A
Rated output power: 15 W
Quasi resonant operation
Input power standby @ 230 V_AC:
Active mode efficiency: > 82%
EMI: pre-compliance with EN55022-Class-B
RoHS compliant
