38V, 0.5A synchronous step-down switching regulator evaluation board based on A6985F

STEVAL-ISA187V1

Overview

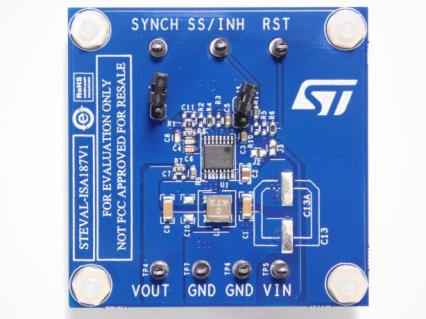

The STEVAL-ISA187V1 is a product evaluation board based on the ST synchronous step-down switching regulator A6985F, which can deliver up to 0.5 A and, with its 100% duty cycle ability to withstand cold crank events and wide input operating voltage range, represents the ideal choice for battery-powered automotive systems. Synchronous rectification helps achieve higher efficiency at full load as well as application compactness, while high-frequency switching (programmable up to 2 MHz) helps reduce the cost and size of power passive components while remaining outside the AM band.

The device can operate in low consumption mode (LCM), with a quiescent current of 30 μA at V_IN=12 V and V_OUT= 3.3 V that ensures high efficiency under light load, which is a requirement in typical car body applications that are active when a car is parked. A low noise mode (LNM) can be selected to meet the requirements of infotainment applications with forced PWM mode under all load conditions. The default board configuration is LCM active, 2 MHz switching frequency, high I_SKIP current and the switchover feature enabled, but all of these settings can be easily changed so the user can evaluate different application scenarios.

Main features

AECQ100 qualification
0.5 A DC output current
4 V to 38 V operating input voltage
Low consumption mode or low noise mode
Programmable I _SKIP current
30 μA I_Q at light load (LCM V_IN = 12 V and V_OUT =3.3 V)
8 μA I_Q-SHTDWN
Adjustable f_SW (250 kHz - 2 MHz)
Output voltage adjustable from 0.85 V to V_IN
Embedded output voltage supervisor

Synchronization
Adjustable soft-start time
Internal current limiting
Overvoltage protection
Output voltage sequencing
Peak current mode architecture
R_DS(on)HS = 360 mΩ; R_DS(on)LS = 150 mΩ
Thermal shutdown
RoHS compliant
