L4971-Based 1.5A Step-Down Switching Regulator (VIN = 8 to 55V)

STEVAL-ISA202V1

Overview

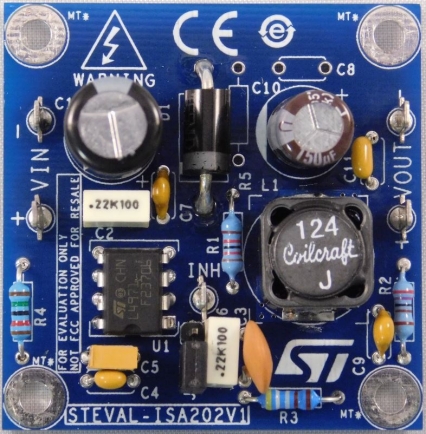

The STEVAL-ISA202V1 product evaluation board provides a platform for evaluation of the L4971, a 1.5 A asynchronous step-down power switching regulator with zero load current operation capability.

Based on the selection of the external components, the device can operate in the entire input voltage range of 8 V < V_IN < 55 V. The output voltage is limited by the voltage rating of the output capacitor, so it can be adjusted within the 3.3 V < V_OUT < 30 V range through voltage divider R2, R3.
The input and output capacitors are capable of sustaining the RMS current within the operating range.

Main features

Input voltage range: 8 V to 55 V
Output voltage: 5.1 V ± 3% (line, load and thermal)
Output ripple: less than 51 mV
Output current range: up to 1.5 A
Max output ripple current: 30%
Current limit: 2.5 A typ.
Switching frequency: 200 kHz
RoHS compliant
