STM32L476VG MCU Discovery Kit

32L476GDISCOVERY

Overview

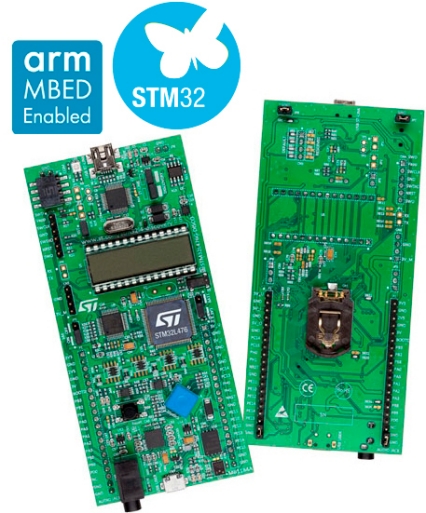

The 32L476GDISCOVERY helps users to develop and share applications with the STM32L4 ultra-low-power microcontrollers.The Discovery kit combines STM32L476 features with LCD, LEDs, audio DAC, sensors (microphone, 3 axis gyroscope, 6 axis compass), joystick, USB OTG, Quad-SPI Flash memory, expansion and probing connectivity. It includes an embedded Ammeter which measures the MCU consumption in low power modes. An external board can be connected thanks to extension and probing connectors.

Main features

STM32L476VGT6 microcontroller featuring 1 Mbyte of Flash memory, 128 Kbytes of RAM in LQFP100 package
On-board ST-LINK/V2-1 supporting USB re-enumeration capability
Three different interfaces supported on USB:
- Virtual com port
- Mass storage
- Debug port
Mbed-enabled (mbed.org)
LCD 24 segments, 4 commons in DIP 28 package
Seven LEDs:
- LD1 (red/green) for USB communication
- LD2 (red) for 3.3 V power on
- LD3 Over current (red)
- LD4 (red), LD5 (green) two user LEDs
- LD6 (green), LD7 (red) USB OTG FS LEDs
Pushbutton (reset)
Four directions Joystick with selection
USB OTG FS with micro-AB connector

SAI Audio DAC, Stereo with output jack
Digital Microphone MEMS Accelerometer and magnetometer Mems
Gyroscope MEMS
128-Mbit Quad-SPI Flash memory
MCU current ammeter with 4 ranges and auto calibration
Connector for external board or RF-EEPROM
Four power supply options:
- ST-LINK/V2-1
- USB FS connector
- External 5 V
- CR2032 battery (not provided)
Extension connectors
Comprehensive free software including a variety of examples, part of STM32Cube package
