High-performance MCU reference design for EV/HEV battery management systems

TIDM-TMS570BMS

Overview

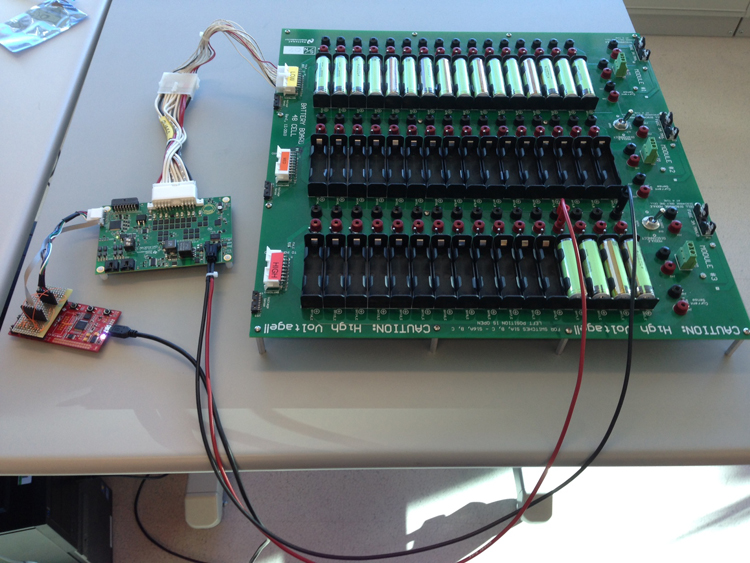

System example of an active cell balancing battery management system. The TMS570LS0432 microcontroller commands the EMB1402 EVM to monitor the battery cells and perform charge/discharge from one battery cell to an external 12V power supply. Users can view battery status and control battery balancing through a GUI running on the host PC.

characteristic

● Support the diagnostic function of TMS570LS0432 MCU to monitor and report TMS570LS0432 status at runtime
● TMS570LS0432 MCU configures BQ76PL455A to monitor battery voltage and check BQ76PL455A status during runtime
● TMS570LS0432 MCU analyzes data from all cells and generates valid cell balancing commands
● TMS570LS0432 MCU commands EMB1428 to perform battery balancing and monitors the status of EMB1428 and EMB1499 during runtime
● TMS570LS0432 MCU communicates with the host PC via UART emulated by the NHET module to display status and control balancing operations at runtime

Backlog Impt notice changes Backlog Impt notice changes end

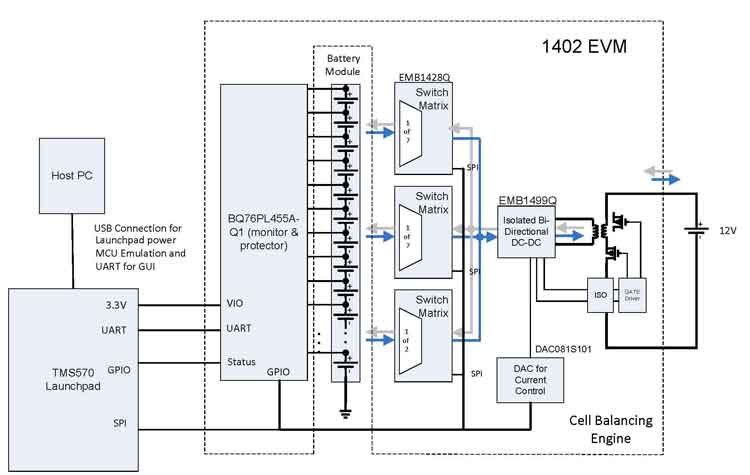

Blockdiagram
