This TI Design details a solution for an automotive tail-light application. The design features the TPS92638-Q1 linear LED driver powered by a synchronous buck converter (LM53601-Q1) that is directly supplied from the automotive-battery voltage. This design helps pass CISPR 25 Class 5 conduct emission and radiated emission without an CMCC filter. The design also optimizes the solution efficiency.

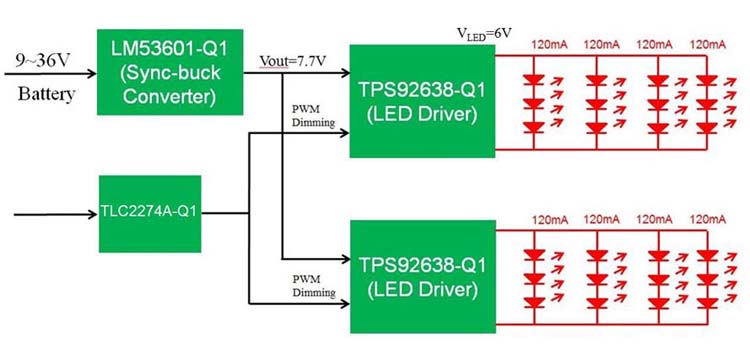

Blockdiagram
