Multi-Protocol Industrial Ethernet Detection with PRU-ICSS Reference Design for Industrial Automation Applications

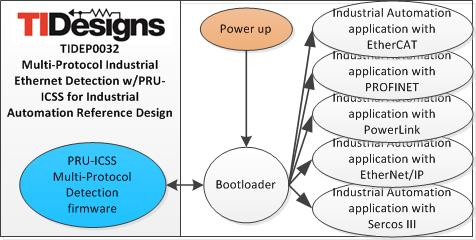

There are currently more than 30 industry standards for Industrial Ethernet in the field of industrial automation. Some mature real-time Ethernet protocols such as EtherCAT, EtherNet/IP, PROFINET, Sercos III, and PowerLink require specialized MAC hardware support for FPGAs or ASICs. The Programmable Real-Time Unit within the Industrial Communication Subsystem (PRU-ICSS) exists as a hardware module of the Sitara processor family and will replace FPGAs or ASICs with a single chip solution. Firmware in PRU-ICSS can be used to detect the type of Industrial Ethernet protocol and load the corresponding industrial application into the Sitara processor during runtime. This TI Design introduces PRU-ICSS's multi-protocol Industrial Ethernet protocol detection firmware.

characteristic

• ● Features high speed/high frequency and high precision, enabling precise PTO control and synchronization.
• ● No need for external ASIC or FPGA
• ● Implemented on PRU-ICSS with Sitara processor
• ● PRU-ICSS firmware included in source code form and available for customer adoption

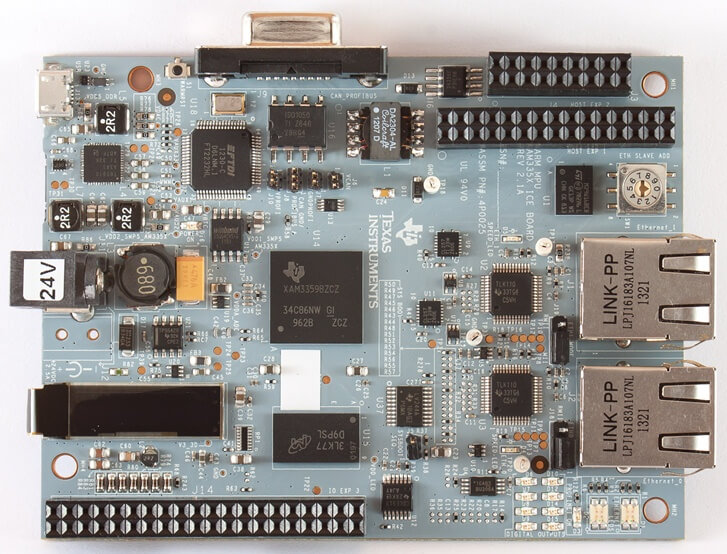

• ● Easy evaluation via TMDSICE3359 Industrial Communications Engine (ICE) EVM
