5V 1A, low EMI, 94% efficiency DC/DC module reference design using double-layer TO-220 package

TIDA-00946

Overview

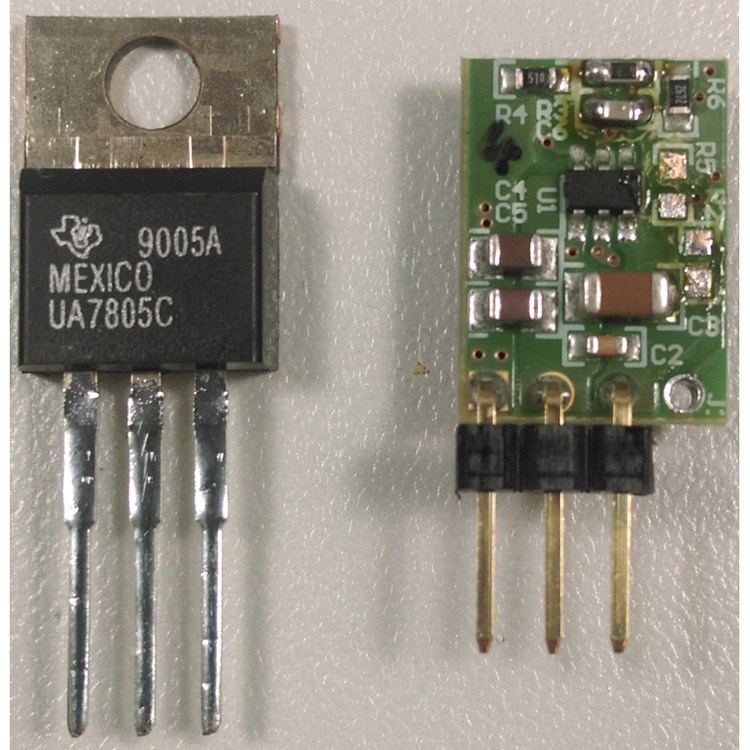

TI reference design TIDA-00946 demonstrates a 10.5mmx14.5mm, 94% efficient low electromagnetic interference (EMI) DC/DC module using the TPS54202, replacing low dropout regulators (LDOs) in most appliance applications. High efficiency eliminates the need for a heat sink, resulting in a smaller, lower cost solution. Higher current capacity enables the addition of more functionality (WiFi, sensors, etc.). High efficiency and low current consumption help achieve stringent energy efficiency ratings.

characteristic

● 5V regulated voltage, output load up to 1A
● Efficiency up to 94%
● 1.6μA standby current and 76μA no-load current
● Compact size: size and pin compatible, smaller than TO-220 (10.5mmx14.5mm)
● The temperature rise is less than 35℃ at full load, no radiator is required
● Reduces the complexity of onboard DC/DC design, saving R&D time and energy in switching power supply EMC design (faster to market)

Backlog Impt notice changes Backlog Impt notice changes end

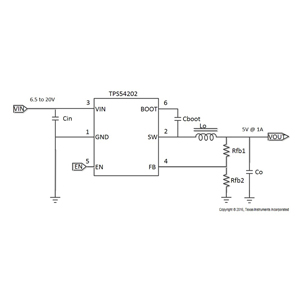

Blockdiagram
