People Counting and Tracking Reference Design Using Sub-1GHz Millimeter Wave Radar Sensors

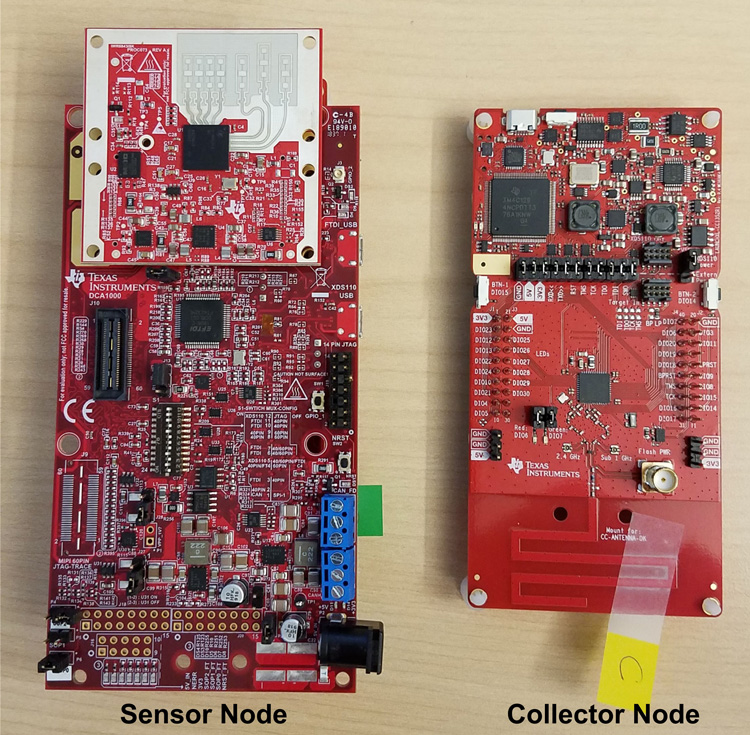

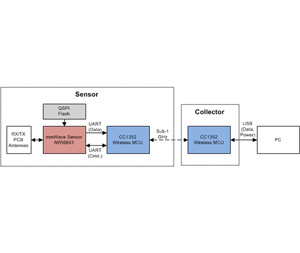

This reference design demonstrates how to use the IWR6843, a single-chip millimeter wave radar sensor from TI with an integrated DSP, to implement indoor and outdoor people counting applications while enabling sub-1GHz wireless communications. This reference design uses the MMWAVEICBOOST and IWR6843ISK evaluation modules (EVMs) and the LAUNCHXL-CC1352R1 wireless MCU LaunchPadTM. The solution is capable of locating people at distances up to 6 meters (close configuration) and 14 meters (long range configuration).

characteristic

• ● Demonstrates hardware and software for people counting and tracking using the IWR6843 device and mmWave radar sensor
• ● Use CC1352 device to achieve long-distance, low-power wireless connection below 1GHz
• ● IEEE 802.15.4e or IEEE 802.15.4g stack for collector and sensor applications
• ● Millimeter wave technology provides range, velocity and angle information ideal for environmental effects
• ● 120-degree azimuth field of view covering a distance of 6m, extendable to 14m by using different chirp configurations
• ● Provide static interference cancellation and group tracking algorithm implementation examples
