High-resolution 3D scanner for factory automation with DLP® technology

TIDA-00362

Overview

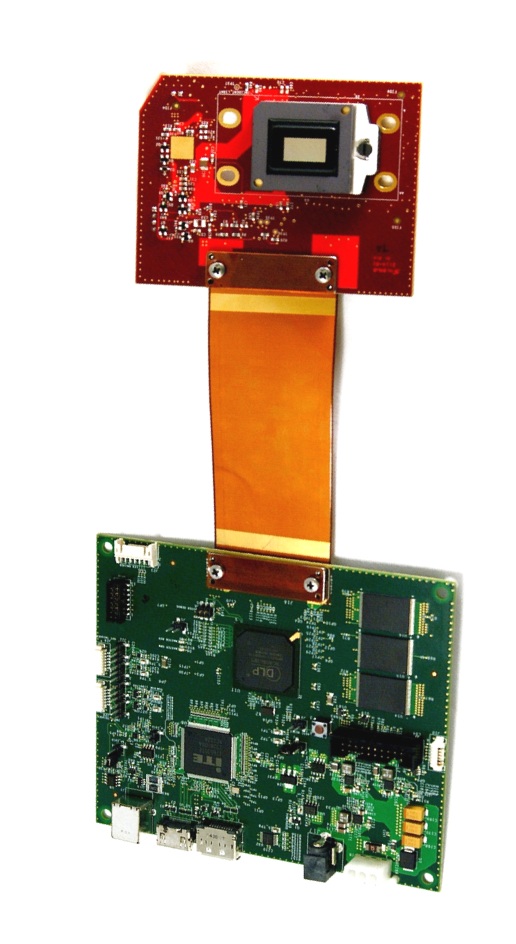

This factory automation reference design uses Texas Instruments' DLP® Advanced Light Control Software Development Kit (SDK) for the LightCrafter™ family of controllers , allowing developers to integrate TI's digital micromirror device (DMD) technology with cameras and sensors. , motors or other peripherals to easily build 3D point clouds. With more than 2 million micromirrors, these high-resolution systems leverage the DLP® LightCrafter™ 6500 Evaluation Module (EVM), which features the DLP6500 1080p DMD, ensuring flexible control of precise graphics for structured lighting solutions in industrial applications.

This factory automation reference design uses Texas Instruments' DLP software development kit (SDK), allowing developers to easily build by integrating TI's digital micromirror device (DMD) technology with cameras, sensors, motors or other peripherals 3D point cloud. With more than 2 million micromirrors, these high-resolution systems leverage the DLP® LightCrafter™ 6500 Evaluation Module (EVM), which features the DLP6500 1080p DMD, ensuring flexible control of precise graphics for structured lighting solutions in industrial applications.

characteristic

● Leverage DLP6500 chipset to implement fast and programmable graphics 3D scanner solutions
● Supports synchronized camera acquisition of global and rolling shutter cameras
● Projector and camera calibration routines
● Structured lighting algorithms for generating disparity maps, depth maps and point clouds
● Adopts Gray code and hybrid three-phase scanning technology

Backlog Impt notice changes Backlog Impt notice changes end

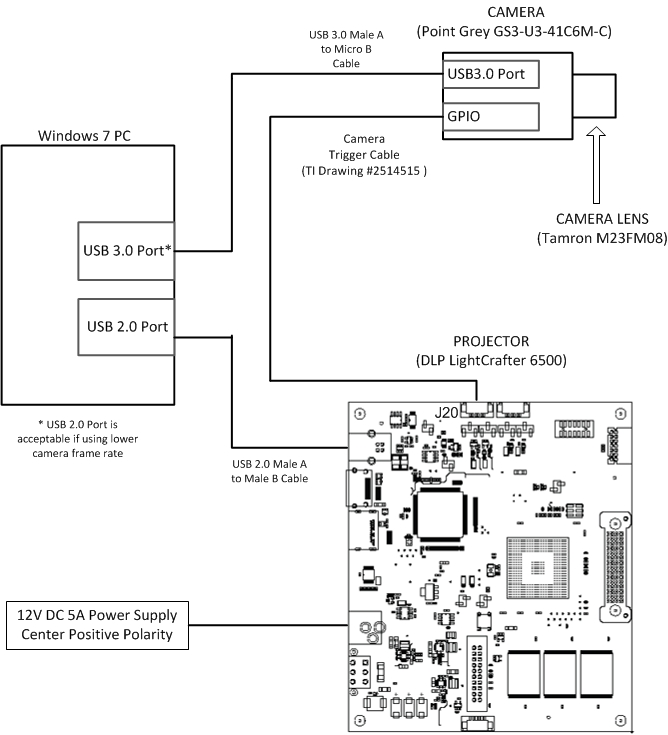

Blockdiagram
