Automotive 1.3M camera module reference design using OV10640, DS90UB913A and realizing coaxial power supply

TIDA-00421

Overview

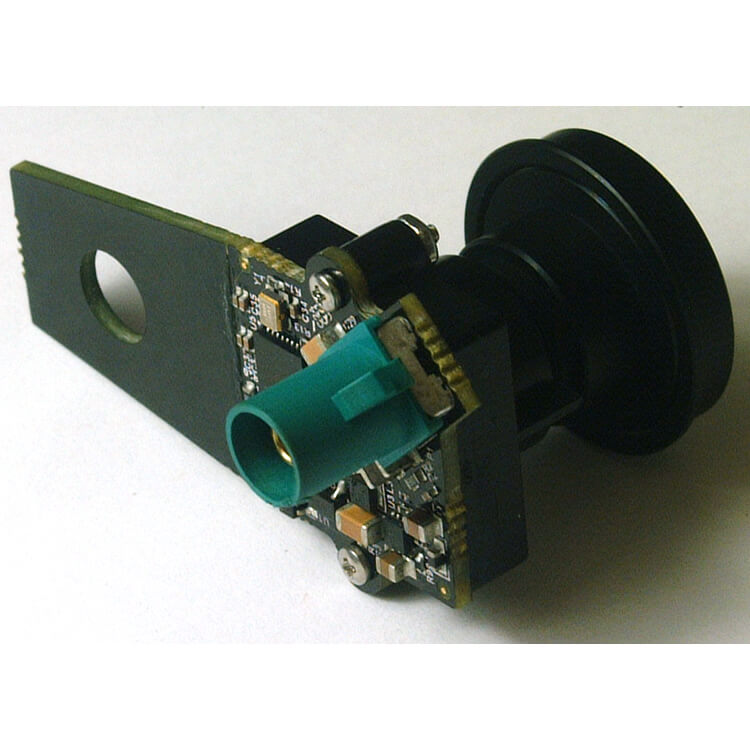

This camera design demonstrates the smallest solution size for a 1.3-megapixel automotive camera. Only a single coaxial cable connection provides digital video, power, camera control and diagnostics. Output video format is 10-bit up to 100MHz or 12-bit up to 75MHz.

characteristic

● Size-optimized design can be mounted on a single PCB of 20x20 mm
● Power supply optimization reduces size and noise
● Diagnostic and built-in self-test (BIST) capabilities
● Single Rosenberger Fakra coaxial cable connector for digital video, power, control and diagnostics
● 1.3-megapixel HDR image sensor OV10640 from OmniVision, which provides 12-bit raw image data
● Includes mounting label that attaches directly to the tripod
● Coaxial cable power supply input voltage range is 4V to 17V
