Portable Point Cloud Generation Reference Design for 3D Scanning with DLP® Technology

TIDA-00361

Overview

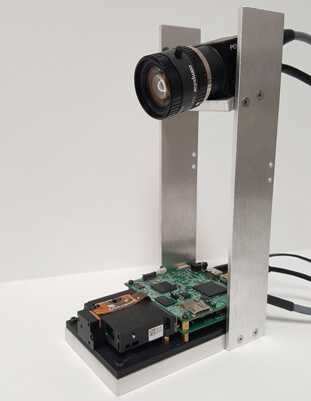

The portable 3D scanning reference design uses Texas Instruments' DLP software development kit (SDK) , allowing developers to easily build by integrating TI's digital micromirror device (DMD) technology with cameras, sensors, motors or other peripherals Detailed 3D point cloud. Ideal as a compact or handheld solution, this high-resolution 3D scanner system utilizes the DLP® LightCrafter™ Evaluation Module (EVM) featuring the DLP3000 WVGA DMD to ensure flexible control of structured lighting solutions in industrial applications precise graphics.

characteristic

● Integrated API and driver support for DLP chipsets for fast and programmable graphics
● Integrated camera support for simultaneous capture
● Projector and camera calibration routines
● Structured lighting algorithms for generating disparity maps, depth maps and point clouds

Backlog Impt notice changes Backlog Impt notice changes end
