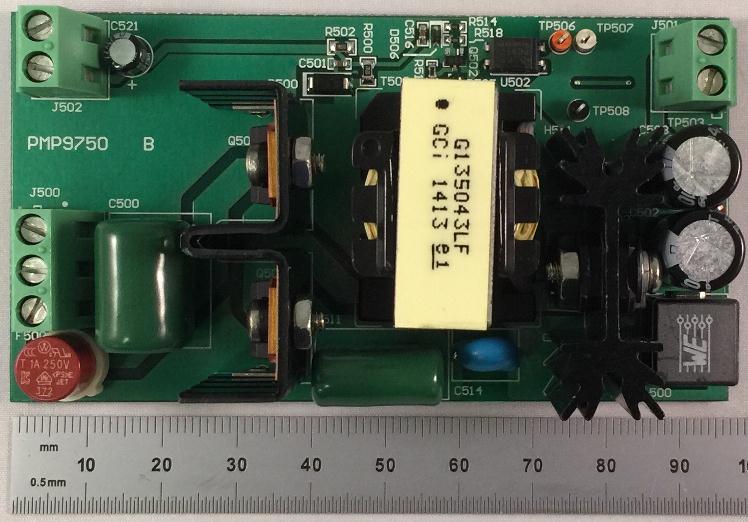

PMP9750 is a CLL resonant converter reference design with an input voltage of 400VDC and an output voltage of 28V/9A. Unlike the LLC series of resonant converters, the CLL resonant converter used in the PMP9750 utilizes its output inductor to minimize the size of the resonant tank. With the resonant controller UCC25600 and bridge driver UCC27714, the PMP9750 achieves a peak efficiency of 95.7%.
