12V/12W PSR Flyback Reference Design

PMP20634

Overview

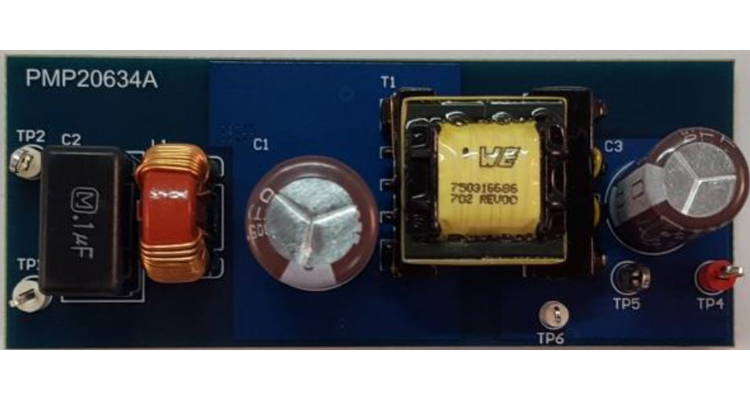

The PMP20634 reference design is an isolated DCM flyback design that provides a universal AC line input from 85V to 265V and produces a 12V output capable of handling a 12W load. The design uses the UCC28730 controller to achieve ultra-low standby power at no load. It achieves 85% efficiency in high and low voltage lines and measures 1 x 3 inches on a 2-layer circuit board.

characteristic

● Universal input, 85V AC to 265V AC
● Achieves 85% efficiency in low and high voltage lines
● Provide optional isolated disabling circuit
● Primary side adjustment enables simple design
● 2-layer circuit board, 1oz copper, 1 x 3 inches

Backlog Impt notice changes Backlog Impt notice changes end

Design Files

Documentation

PMP20634 Test Results
