ZLL Remote Control Reference Design

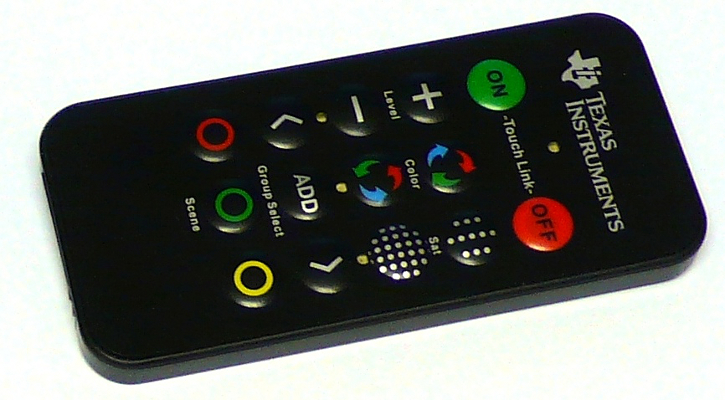

Texas Instruments' ZLLRC reference design enables simple and direct control of lights connected to a ZigBee Light Link network. It is designed to control a subgroup of lights on that network, such as the lights in a room in your home. It creates its own group containing lights that have touch connections to it. These lights can be added/removed later. It has 14 buttons to control status (on/off), hue, saturation, level, target selection and scene. ZLLRC is supported by Z-Stack Lighting version 1.0.2 and higher.

It is based on the CC2530 system-on-chip (SoC) with integrated ZigBee radio. It connects to the onboard PIFA PCB antenna through an integrated balun. To extend battery life, the TPS62730 DCDC converter can be used to convert the CR2025 battery voltage to 2.1 V.

characteristic

• ● Low power consumption ZLL remote control design
• ● Inverted F-type PCB antenna
• ● 14 buttons
• ● 4 LEDs
• ● Buzzer for user feedback
• ● CR2025 battery
• ● FCC/IC/CE compatible
