DIY Cars: Build Guide Using the TB67H450FNG

Overview

TB67H450FNG	PWM chopper type brushed DC motor driver
System power	5V lithium-ion battery
Motor specifications	Universal brushed DC motor
MCD board	TB67H450FNG Evaluation Board (MIKROE-3982)
MCD control method	PWM control (Arduino Nano is used to control the system and generate PWM signals)

Features

• DIY car design guide based on universal motor driver IC TB67H450FNG.
• Various operating modes are possible by individually controlling the drive wheel motors (left and right).
• Arduino Nano is used as a microcontroller board to control the operation.

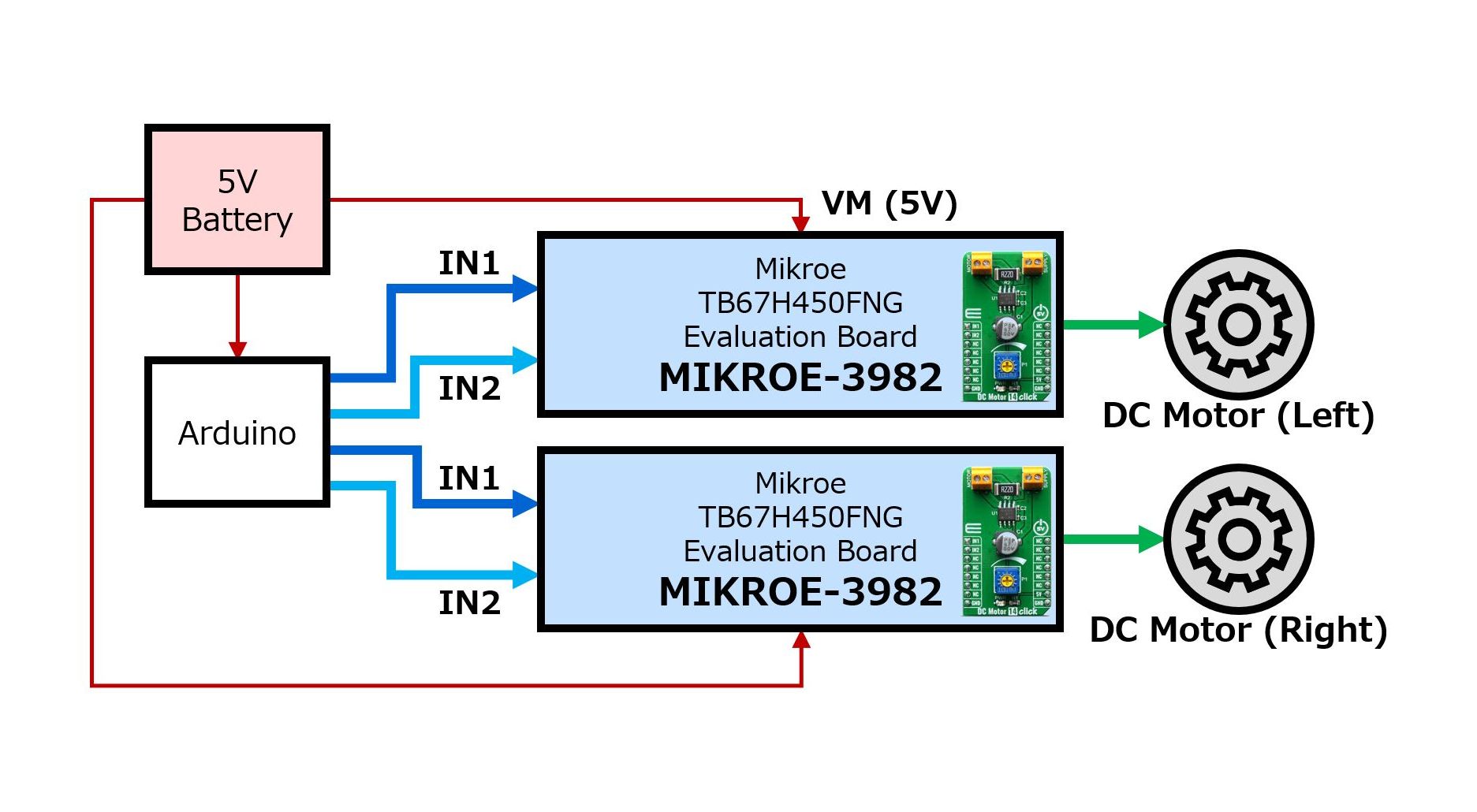

Blockdiagram

Design Files

Reference guide
