LDO Regulator TCR15AGADJ Application & Circuit

Overview

• TCR15AGADJ has a driving capability of up to 1.5A. This device is very suitable for portable applications that require high-density board assembly, such as mobile phones.
• The regulator's adjustable output voltage range is 0.6V to 3.6V.
• Small ceramic input and output capacitors can be used with the TCR15AGADJ.

Features

• Ultra-small package WCSP6F (0.8mm × 1.2mm (typ.), t: 0.33mm (max.))
• Wide output voltage range (fixed output voltage 0.65V to 3.6V, adjustable output voltage 0.6V to 3.6 V)
• Fast load transient response -100／＋115mV (typ.) @0.01A⇔1.5A, COUT＝4.7μF
• High ripple rejection ratio 95dB (typ.) @1kHz
• Overcurrent protection function
• Thermal shutdown function
• Auto-discharge function
• Inrush current reduction function (output voltage soft start)
• Under-voltage lockout function: 0.5V (typ.)

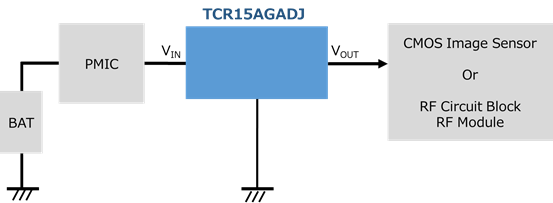

Blockdiagram

Design Files

Documentation
