MAXREFDES_LIDAR1#: Quad-channel LiDAR receiver front-end reference design using MAX40662, MAX40026

MAXREFDES_LIDAR1#: Quad-Channel LiDAR Receiver Front-End Reference Design, MAX40662, MAX40026

Overview

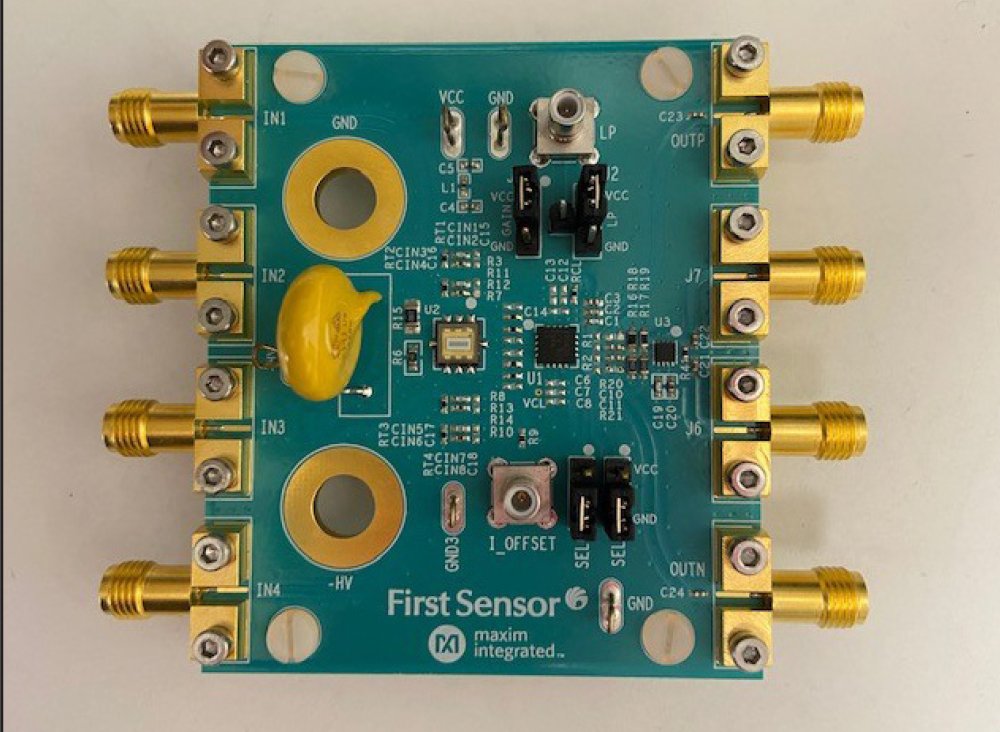

Maxim Integrated partnered with First Sensor to design a reference design featuring the First Sensor 4-channel APD array, Maxim quad TIA with multiplexer MAX40662, and Maxim single fast comparator MAX40026.

This document highlights how easy it is to interface these three critical components when designing the front end of a receiver in a light detection and ranging (LiDAR) module. The MAX400662 and MAX40026 are AEC-Q100 qualified. So, these are highly suitable for automotive applications. These can be used in any industrial or commercial applications needing LiDAR.

This document provides some tips and recommendations seamlessly applied to systems with a higher count of channels.

特征

4-Channel APD
Quad Channel TIA with MUX
Single Fast Comparator

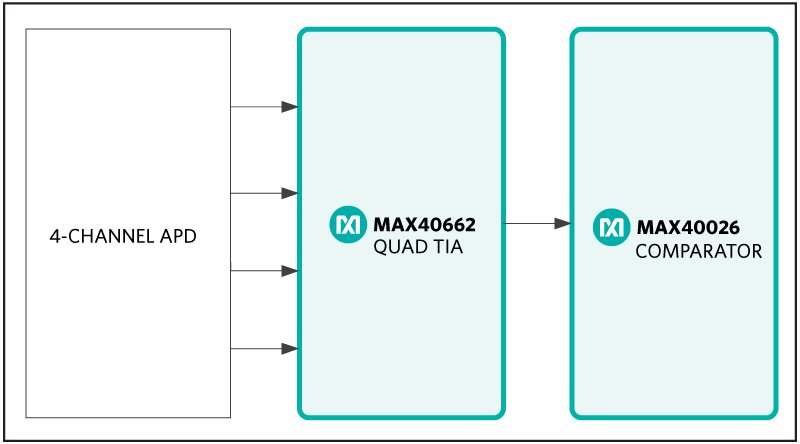

Blockdiagram
