USB Type-C power delivery sink expansion board based on TCPP01-M12, adapted to STM32 Nucleo

The X-NUCLEO-SNK1M1 expansion board allows evaluating the features of TCPP01-M12 and the USB Type-C overvoltage protection for VBUS and CC lines suitable for Sink applications.

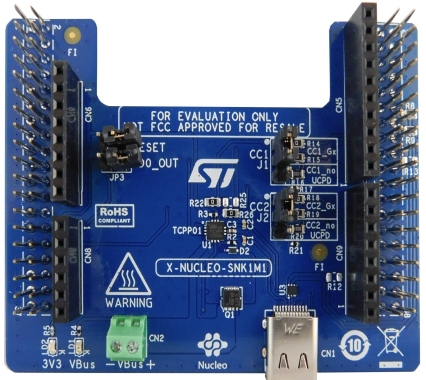

[X-NUCLEO-SNK1M1 IMAGE]
The expansion board is designed to be stacked on top of any STM32 Nucleo-64 development board exploiting the characteristics of the USB Type-C and Power Delivery (UCPD) peripheral embedded in their microcontrollers.
It can also be stacked on other STM32 Nucleo development boards not supporting the UCPD peripheral to demonstrate the Type-C basic operations (attach, detach and power supply current capability recognition).
The X-NUCLEO-SNK1M1 provides an effective demonstration of the dead battery operation, thanks to the integrated ST715PU33R LDO linear regulator that supplies the connected STM32 Nucleo development board when a Source is attached via a USB Type-C connector.
The X-NUCLEO-SNK1M1 is compliant with the latest USB Type-C and Power Delivery specifications and is also USB-IF certified as a 100 W solution supporting Programmable Power Supply (PPS) function.
The companion software package (X-CUBE-TCPP) contains the application examples for development boards embedding UCPD-based microcontrollers (NUCLEO-G071RB and NUCLEO-G474RE) and for non-UCPD ones (NUCLEO-L412RB-P).

所有功能
On-board TCPP01-M12 protection for USB Type-C and PD Sink applications
Compliant with the latest USB Type-C and Power delivery specification, including the Programmable Power Supply (PPS) feature
USB-IF certified (Test ID certification: 5205)
100 W-rated solution
6 V overvoltage protection (OVP) on CC lines against short-to-VBUS when the connector is unplugged
Up to 22 V adjustable overvoltage protection (OVP) on VBUS line against charger failure
Surge protection (8/20 µs) and system-level ESD protection on VBUS
Common mode filter and ESD protection on USB 2.0 High Speed data lines
System level ESD protection on CC lines as per IEC61000-4-2 level 4 (±8 kV contact discharge)
Low power mode for battery operation allowing zero current consumption when no cable is attached
Integrated dead battery management when the device battery is fully depleted
Overtemperature protection (OTP)
RoHS compliant
