Single node L9963E board for distributed multi-unit BMS

The EVAL-L9963E-NDS is a hardware tool for L9963E for Li-ION battery management application. The board is intended to be used as a single node in a distributed BMS. EVAL-L9963E-NDS is needed when the total number of battery cells to be managed exceeds 14. The number of nodes to be stacked depends on total battery voltage, additional nodes can be added via additional EVAL-L9963E-NDS. A maximum of 31 total nodes beyond the base node EVAL-L9963E-MCU can be stacked. It has to be used in conjunction with EVAL-L9963E-MCU as second stage or stacked with additional EVAL-L9963E-NDS.

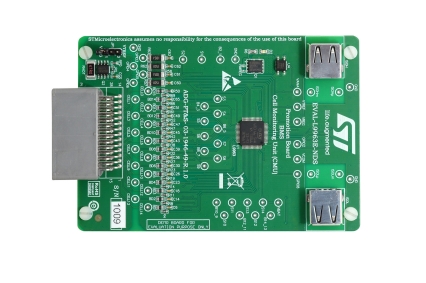

[EVAL-L9963E-NDS Image]
EVAL-L9963E-NDS allows the user to manage up to 14 channels for cell voltage sensing, one channel for current sensing, and up to 4 analog input for temperature sensing (plus an additional on-board NTC to sense PCB temperature). The board provides additional protection for hot plug.
EVAL-L9963E-NDS is not intended to be used as a standalone evaluation board but with EVAL-L9963E-MCU.

所有功能
Single node L9963E board for distributed multi-cell BMS
To be used with EVAL-L9963E-MCU or EVAL-L9963E as second stage or stacked with additional EVAL-L9963E-NDS
Measures from 4 to 14 cells in series, with 0 us desynchronization delay between samples. Supports also busbar connection without altering cell results
Coulomb counter supporting pack overcurrent detection in both ignition on and off states
Fully synchronized current and voltage samples
16-bit voltage measurement
Communication between nodes through a 2.66 Mbps isolated serial communication with regenerative buffer, supporting dual access ring
Transformer based isolation
Up to 4 analog inputs for NTC sensing, plus PCB temperature sensing
Hot-plug protection circuit
