Mini IoT substrate

OM40008

Overview

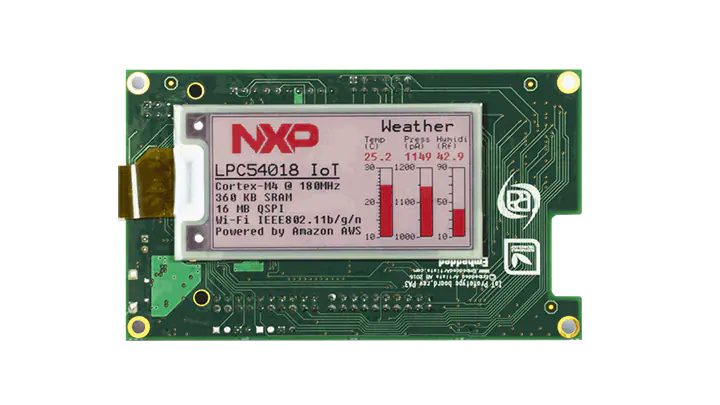

The mini IoT baseboard was designed by Embedded Artists in collaboration with NXP to complement NXP's MCU IoT modules such as the LPC54018 IoT module OM40007, enabling easy-to-use, low-cost IoT application development. This baseboard offers onboard accelerators, buttons, LEDs, sites for the popular Arduino®^UNOand Mikroe Click add-on boards, and connections for the Pervasive Displays ePaper display (available separately). The board supports rechargeable lithium batteries, allowing users to conduct complete one-stop IoT system prototyping with a small-format development kit.

The product comes with an onboard CMSIS-DAP hardware debugger for debugging via MCUXpresso IDE, as well as other popular tool chains such as IAR EWARM and Keil MDK.

Design Files

Printed Circuit Board and Circuit Diagram: Schematics for Revision A IoT Mini Baseboard
