KITFS26AEEVM: FS26 Secure SBC Evaluation Board

Overview

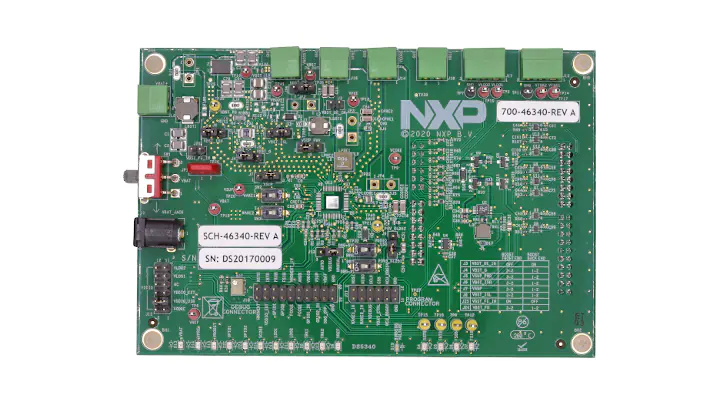

KITFS26AEEVM allows customers to easily develop FS26 series devices. It is targeted at 12V automotive applications. The tool can be used independently or controlled via USB interface. SPI commands are easily controlled via NXP GUI software.

The FS26 series can be evaluated with this board as it is loaded with superset parts. FS26xx parts soldered to the board can be fused once or multiple configurations can be tested on demand in simulation mode.
Target applications

On-board chargers
Hybrid electric vehicle (HEV) applications
Battery management systems
Body control units

Design Files

Documentation

UM11503, KITFS26AEEVM Evaluation Board - User Guide
