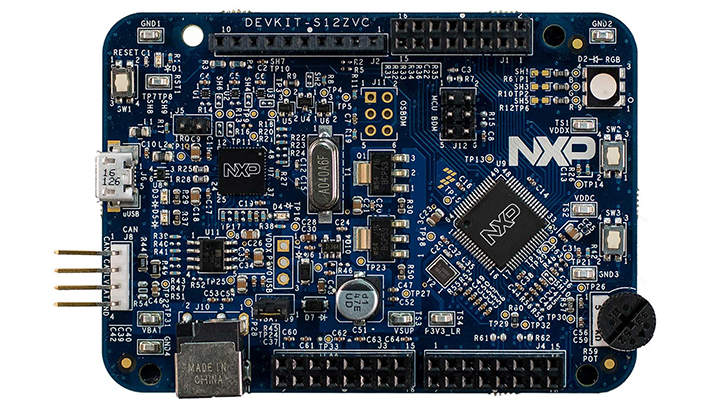

DEVKIT-S12ZVC: 9S12ZVCA192 MCU evaluation development board

Overview

The DEV KIT-S12ZVC board features the 9S12ZVCA192 MagniV microcontroller and is suitable for high temperature automotive and industrial CAN node applications such as relays, actuators and switches. The S12ZVC series features the S12Z core, memory expandable up to 192 KB of Flash, integrated CAN physical layer, 5 to 12 V integrated voltage regulator, ADC, DAC, ACMP, two SPI and SCI/LIN, 1 IIC, and Available in 48 and 64 LQFP packages, supporting -40 to 150°C operating temperature range.

DEVKIT-S12ZVC is a low-cost development kit that provides CAN, LIN/SCI connectivity on a small form factor board compatible with Arduino® ^Rev3 UNO pinout. It has expansion options using the DEVKIT-COMM board. This development kit features a 12 V power supply, USB powered OpenBDM debugging, potentiometer, dual buttons and RGB LED.

MoreCollapse
