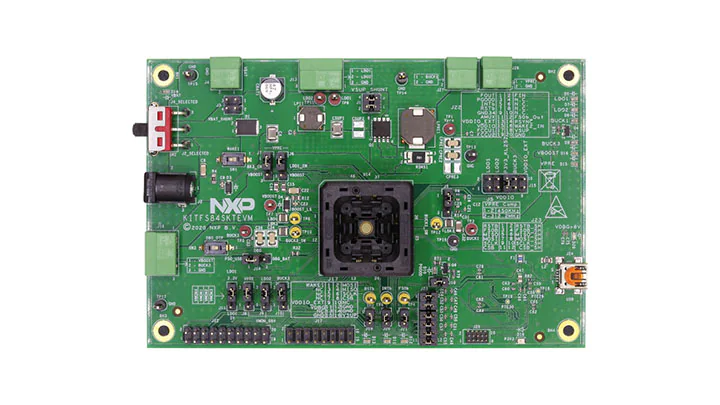

KITFS84SKTEVM: FS84 QFN48EP Safety SBC programming board

Overview

KITFS84SKTEVM makes it easy to configure the device for customers thanks to the QFN48 socket. The device can be easily placed on the socket, fused and then soldered to the customer's prototype board. It targets 12V automotive and 24V truck applications.

The kit interfaces with FlexGUI software, allowing customers to modify registers and develop OTP (One Time Programming) configurations and burn them when ready. In addition to OTP programming, customers can test all functions (with some limitations due to sockets). OTP can be burned 3 times.
Target application

Automotive vision system

Design Files

Documentation

UM11500, KITFS84SKTEVM programming board - User Guide
