A6986I based 38V, 5W synchronous isovoltage converter evaluation board with single isolated output

The STEVAL-A6986IV2 evaluation board is based on ST A6986I (automotive 38 V, 5 W synchronous iso-buck converter for isolated applications).

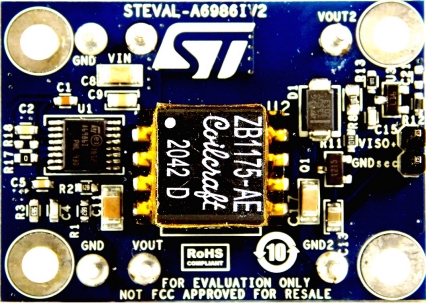

[STEVAL-A6986IV2 IMAGE]
The primary output voltage can be accurately adjusted, whereas the isolated secondary output is generated by a transformer. No optocoupler is required.
The primary sink capability (typ. 1.9 A) allows a proper energy transfer to the secondary side as well as enables a tracked soft-start of the secondary output.
The control loop is based on a peak current mode architecture and the device operates in forced PWM.
The 300 ns blanking time filters oscillations generated by the transformer leakage inductance and makes the solution more robust.
Pulse by pulse current sensing on both power elements implements an effective constant current protection on the primary side. Due to the primary reverse current limit, the secondary output is protected against short-circuit events. The secondary voltage is stabilized over current by using a power transistor and a shunt voltage reference (TL431).
The evaluation board generates an isolated voltage (around 5 V, easily adjustable), especially suitable for applications requiring a single isolated supply.

所有功能
AEC-Q100 qualified
Operating temperature range: -40 °C to 135 °C for Tj
Designed for iso-buck topology
4 to 38 V operating input voltage
Primary output voltage regulation
No optocoupler required
1.9 A typical sink peak primary current capability
Peak current mode architecture in forced PWM operation
300 ns blanking time
8 µA IQ-SHTDWN
Adjustable fSW and synchronization
Embedded primary output voltage supervisor
Adjustable soft-start time
Internal primary current limiting
Overvoltage protection
RDS(on) HS = 180 mΩ, RDS(on) LS = 150 mΩ
Thermal shutdown
