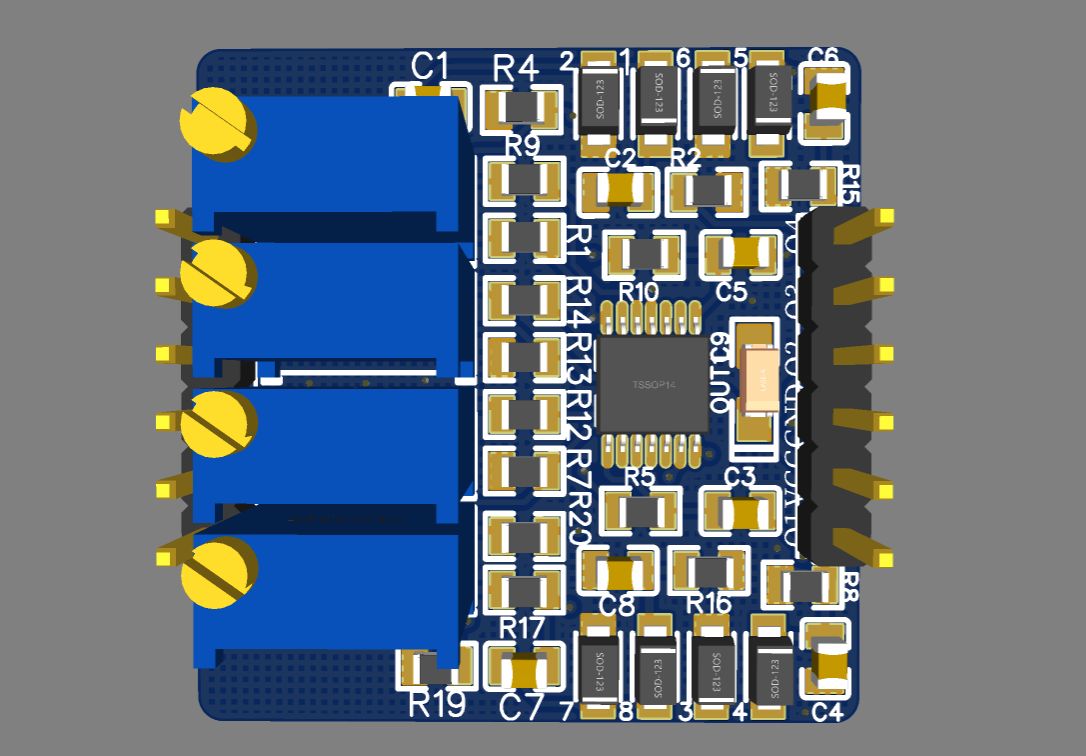

OPA4377 operational amplifier module

Overview

OPA4377 is a wideband CMOS amplifier;

It provides very low noise: 7.5V/Hz at 1kHz low noise, low input bias current and low bias voltage;

Hz: 1MV (maximum) voltage while operating at low bias current;

Input bias current: 0.2Pa0.76MA (TYP);

1. Rail-to-rail op amp;

2.4-channel operational amplifier;

3.Power supply voltage: 3.3V-5.5V;

4.5.5MHz gain bandwidth product;

5. Slew rate 2V/us;

6. Low noise: 7.5V/Hz at 1kHz;
